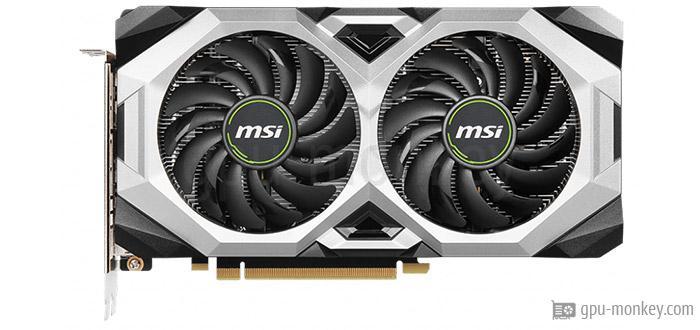

MSI GeForce RTX 2060 VENTUS GP
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the MSI GeForce RTX 2060 VENTUS GP are listed on this page. The graphics card is based on the TU106 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The MSI GeForce RTX 2060 VENTUS GP can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe MSI GeForce RTX 2060 VENTUS GP has 30 execution units with 1920 shaders. This gives the graphics card a theoretical FP32 computing power of 6.45 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2060 |
| GPU Chip: | TU106 (Turing) |
| Streaming Multiprocessors: | 30 |
| Shader: | 1920 |
| Render Output Units: | 48 |
| Texture Units: | 120 |
| Raytracing Cores: | 30 |
MemoryThe MSI GeForce RTX 2060 VENTUS GP is equipped with 6 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 336 GB/s |
| Memory Interface: | 192 bit |
Clock SpeedsThe base frequency of this graphics card is 1.365 GHz and the manufacturer specifies the maximum turbo clock as 1.680 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.365 GHz |
| Boost Clock: | 1.680 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce RTX 2060 VENTUS GP is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 160 W. |
|
| TDP: | 160 W |
| TDP (up): | -- |
| Tjunction max: | 88 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the MSI GeForce RTX 2060 VENTUS GP are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the MSI GeForce RTX 2060 VENTUS GP. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the MSI GeForce RTX 2060 VENTUS GP it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the MSI GeForce RTX 2060 VENTUS GP can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe MSI GeForce RTX 2060 VENTUS GP needs the space of 2 PCIe-Slots in a case. It is 231 mm long, 128 mm high and 42 mm wide. |
|
| Length: | 231 mm |
| Height: | 128 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 720 g |
| SFF-Ready: | No |
Additional dataThe MSI GeForce RTX 2060 VENTUS GP was released in Q1/2019 at a price of 349 $ (Reference). The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q1/2019 |
| Launch Price: | 349 $ (Reference) |
| Structure size: | 12 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.365 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2060
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce RTX 2060 VENTUS GP
6 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
