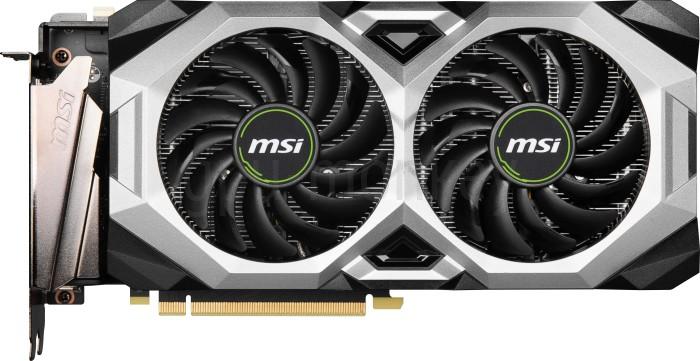

MSI GeForce RTX 2080 SUPER Ventus XS OC
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the MSI GeForce RTX 2080 SUPER Ventus XS OC are listed on this page. The graphics card is based on the TU104 (Turing) graphics chip, which is manufactured with a structure width of 12 nm. The MSI GeForce RTX 2080 SUPER Ventus XS OC can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe MSI GeForce RTX 2080 SUPER Ventus XS OC has 48 execution units with 3072 shaders. This gives the graphics card a theoretical FP32 computing power of 11.24 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 2080 SUPER |
| GPU Chip: | TU104 (Turing) |
| Streaming Multiprocessors: | 48 |
| Shader: | 3072 |
| Render Output Units: | 64 |
| Texture Units: | 192 |
| Raytracing Cores: | 48 |
MemoryThe MSI GeForce RTX 2080 SUPER Ventus XS OC is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.938 GHz and the speed is 15.5 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.938 GHz |
| Memory Speed: | 15.5 Gbps |
| Memory bandwidth: | 496 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.650 GHz and the manufacturer specifies the maximum turbo clock as 1.830 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.650 GHz |
| Boost Clock: | 1.830 GHz + 1 % |
| Avg (Game) Clock: | 1.815 GHz |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce RTX 2080 SUPER Ventus XS OC is powered by 1 x 6-Pin, 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 250 W. |
|
| TDP: | 250 W |
| TDP (up): | 280 W |
| Tjunction max: | 89 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the MSI GeForce RTX 2080 SUPER Ventus XS OC are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 43 dB |
ConnectivityUp to 4 monitors can be operated with the MSI GeForce RTX 2080 SUPER Ventus XS OC. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the MSI GeForce RTX 2080 SUPER Ventus XS OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the MSI GeForce RTX 2080 SUPER Ventus XS OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe MSI GeForce RTX 2080 SUPER Ventus XS OC needs the space of 3 PCIe-Slots in a case. It is 257 mm long, 127 mm high and 51 mm wide. |
|
| Length: | 257 mm |
| Height: | 127 mm |
| Width: | 51 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | 962 g |
Additional dataThe MSI GeForce RTX 2080 SUPER Ventus XS OC was released in Q3/2019 at a price of 779 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2019 |
| Launch Price: | 779 $ |
| Structure size: | 12 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.650 GHz, 8 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 SUPER
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce RTX 2080 SUPER Ventus XS OC
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
