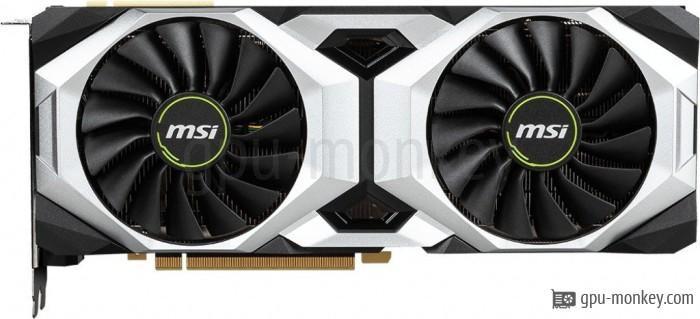

MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 is 1.575 GHz, so the graphics card achieves an FP32 computing power of 13.71 TFLOPS.
GPUThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 is equipped with 68 execution and 4352 shader units. With single precision, a theoretical FP32 computing power of 13.71 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 2080 Ti |
| GPU Chip: | TU102 (Turing) |
| Streaming Multiprocessors: | 68 |
| Shader: | 4352 |
| Render Output Units: | 88 |
| Texture Units: | 272 |
| Raytracing Cores: | 68 |
MemoryThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 has a 352 bit wide memory interface, with which a memory bandwidth of 616 GB/s is achieved. In total, 11 GB GDDR6 graphics memory is available for the graphics card. |
|
| Memory Size: | 11 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 616 GB/s |
| Memory Interface: | 352 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 with 1.350 GHz (base clock) or with 1.575 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.350 GHz |
| Boost Clock: | 1.575 GHz + 2 % |
| Avg (Game) Clock: | 1.545 GHz |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 89 °C. |
|
| TDP: | 260 W+ 4 % |
| TDP (up): | 320 W |
| Tjunction max: | 89 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 42-43 dB |
ConnectivityUp to 4 screens can be connected to the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 are 268 mm in length, 112 mm in height and 50 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
| Length: | 268 mm |
| Height: | 112 mm |
| Width: | 50 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | 1106 g |
Additional dataThe MSI GeForce RTX 2080 Ti VENTUS 11G OCV1 is manufactured in a structure width of 12 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q3/2018. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2018 |
| Launch Price: | 1,599 $ |
| Structure size: | 12 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.350 GHz, 11 GB (260 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce RTX 2080 Ti VENTUS 11G OCV1
11 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
Cyberpunk 2077
2,942 entries
2,942 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
Crypto-Mining Vertcoin Hashrate
2,459 entries
2,459 entries
FP32 Performance
5,522 entries
5,522 entries
