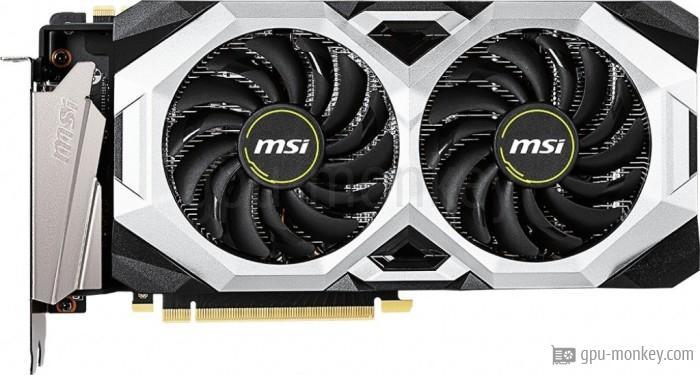

MSI GeForce RTX 2080 Ventus 8G OC
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the MSI GeForce RTX 2080 Ventus 8G OC. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the MSI GeForce RTX 2080 Ventus 8G OC is 1.800 GHz, so the graphics card achieves an FP32 computing power of 10.60 TFLOPS.
GPUThe MSI GeForce RTX 2080 Ventus 8G OC is equipped with 46 execution and 2944 shader units. With single precision, a theoretical FP32 computing power of 10.60 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 2080 |
| GPU Chip: | TU104 (Turing) |
| Streaming Multiprocessors: | 46 |
| Shader: | 2944 |
| Render Output Units: | 64 |
| Texture Units: | 184 |
| Raytracing Cores: | 46 |
MemoryThe MSI GeForce RTX 2080 Ventus 8G OC has a 256 bit wide memory interface, with which a memory bandwidth of 448 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the MSI GeForce RTX 2080 Ventus 8G OC with 1.515 GHz (base clock) or with 1.800 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.515 GHz |
| Boost Clock: | 1.800 GHz + 5 % |
| Avg (Game) Clock: | 1.710 GHz |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce RTX 2080 Ventus 8G OC has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 88 °C. |
|
| TDP: | 225 W+ 5 % |
| TDP (up): | 250 W+ 5 % |
| Tjunction max: | 88 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe MSI GeForce RTX 2080 Ventus 8G OC is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 34 dB |
| Noise (Load): | 42 dB |
ConnectivityUp to 4 screens can be connected to the MSI GeForce RTX 2080 Ventus 8G OC, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | 1 |
FeaturesetThe MSI GeForce RTX 2080 Ventus 8G OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the MSI GeForce RTX 2080 Ventus 8G OC in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the MSI GeForce RTX 2080 Ventus 8G OC are 268 mm in length, 114 mm in height and 50 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
| Length: | 268 mm |
| Height: | 114 mm |
| Width: | 50 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | 1046 g |
Additional dataThe MSI GeForce RTX 2080 Ventus 8G OC is manufactured in a structure width of 12 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q3/2018. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2018 |
| Launch Price: | 779 $ |
| Structure size: | 12 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.515 GHz, 8 GB (225 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 2080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI GeForce RTX 2080 Ventus 8G OC
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,638 entries
4,638 entries
Cyberpunk 2077
2,453 entries
2,453 entries
Shadow of the Tomb Raider
4,559 entries
4,559 entries
Battlefield 5
3,937 entries
3,937 entries
Geekbench 5
3,721 entries
3,721 entries
Crypto-Mining Ethereum Hashrate
3,447 entries
3,447 entries
Crypto-Mining Ergo Hashrate
3,673 entries
3,673 entries
Crypto-Mining Ravencoin Hashrate
3,600 entries
3,600 entries
Crypto-Mining Vertcoin Hashrate
2,445 entries
2,445 entries
FP32 Performance
5,094 entries
5,094 entries
