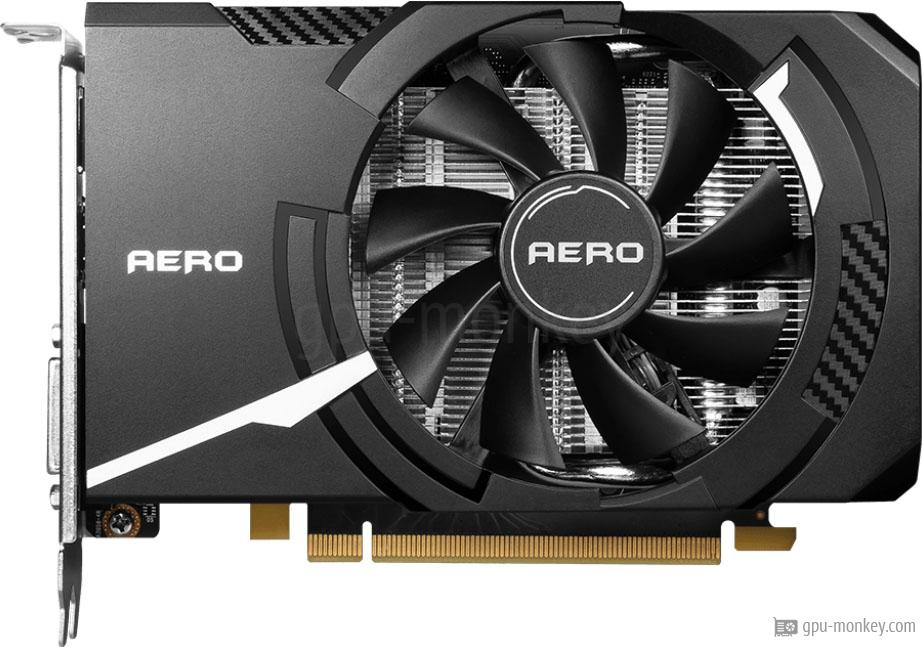

The MSI GeForce RTX 3050 AERO ITX 8G OCV1 has 2560 shaders and 20 execution units. The graphics card thus achieves a theoretical FP32 computing power of 9.25 TFLOPS.
- GPU Chip
- GA106-150-A1 (Ampere)
- Streaming Multiprocessors
- 20
- Shader
- 2560
- Render Output Units
- 48
- Texture Units
- 80
- Raytracing Cores
- 20
The MSI GeForce RTX 3050 AERO ITX 8G OCV1 can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 224 GB/s on a 128 bit wide memory interface.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 224 GB/s
- Memory Interface
- 128 bit
The base clock frequency of the MSI GeForce RTX 3050 AERO ITX 8G OCV1 is 1.552 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
- Base Clock
- 1.552 GHz
- Boost Clock
- 1.807 GHz+2 %
- Overclocking
- Yes
The TDP (Thermal Design Power) of the MSI GeForce RTX 3050 AERO ITX 8G OCV1 is 115 W. The graphics card is supplied with energy via the 1 x 6-Pin connector.
- TDP
- 115 W-12 %
- Tjunction max
- 93 °C
- PCIe-Power
- 1 x 6-Pin
The MSI GeForce RTX 3050 AERO ITX 8G OCV1 has a total of 1 Axial fans to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 1 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the MSI GeForce RTX 3050 AERO ITX 8G OCV1.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 1x DP 1.4a
- DVI
- 1
The MSI GeForce RTX 3050 AERO ITX 8G OCV1 has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
The video codecs accelerated in hardware by the MSI GeForce RTX 3050 AERO ITX 8G OCV1 reduce the processor load and ensure lower energy consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The MSI GeForce RTX 3050 AERO ITX 8G OCV1 is 168 mm long and 111 mm high. With a width of 42 mm, the graphics card requires 2 PCIe-Slots in the case.
- Length
- 168 mm
- Height
- 111 mm
- Width
- 42 mm
- Width (Slots)
- 2 PCIe-Slots
- Weight
- 437 g
- SFF-Ready
- No
The MSI GeForce RTX 3050 AERO ITX 8G OCV1 made in 8 nm was published in Q4/2022 for 249 $.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q4/2022
- Launch Price
- 249 $ (Reference)
- Structure size
- 8 nm
