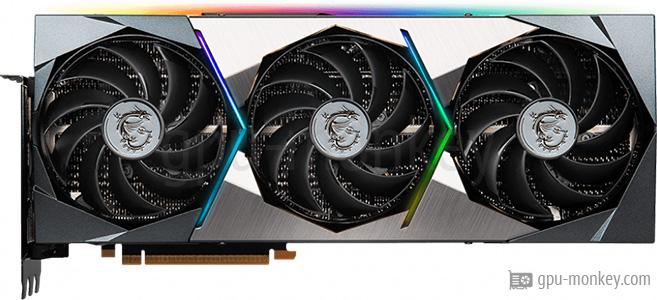

MSI GeForce RTX 3090 Ti SUPRIM 24G


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the MSI GeForce RTX 3090 Ti SUPRIM 24G are listed on this page. The graphics card is based on the GA102-350-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The MSI GeForce RTX 3090 Ti SUPRIM 24G can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The MSI GeForce RTX 3090 Ti SUPRIM 24G has 84 execution units with 10752 shaders. This gives the graphics card a theoretical FP32 computing power of 41.61 TFLOPS.

Based on: NVIDIA GeForce RTX 3090 Ti
GPU Chip: GA102-350-A1 (Ampere)
Streaming Multiprocessors: 84
Shader: 10752
Render Output Units: 112
Texture Units: 336
Raytracing Cores: 84

Memory

The MSI GeForce RTX 3090 Ti SUPRIM 24G is equipped with 24 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.313 GHz and the speed is 21 Gbps.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

The base frequency of this graphics card is 1.560 GHz and the manufacturer specifies the maximum turbo clock as 1.935 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.560 GHzDeviation vs GPU group-7 %
Boost Clock: 1.935 GHzDeviation vs GPU group+ 4 %
Avg (Game) Clock: 1.920 GHz
Overclocking: Yes

Thermal Design

The MSI GeForce RTX 3090 Ti SUPRIM 24G is powered by 1 x 16-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 450 W.

TDP: 450 W
TDP (up): --
Tjunction max: 92 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

Graphics processor and graphics memory of the MSI GeForce RTX 3090 Ti SUPRIM 24G are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 3 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the MSI GeForce RTX 3090 Ti SUPRIM 24G.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the MSI GeForce RTX 3090 Ti SUPRIM 24G it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: MSI Mystic Light

Supported Video Codecs

This area lists the video codecs that the MSI GeForce RTX 3090 Ti SUPRIM 24G can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The MSI GeForce RTX 3090 Ti SUPRIM 24G needs the space of 4 PCIe-Slots in a case. It is 338 mm long, 140 mm high and 71 mm wide.

Length: 338 mm
Height: 140 mm
Width: 71 mm
Width (Slots): 4 PCIe-Slots
Weight: 2154 g

Additional data

The MSI GeForce RTX 3090 Ti SUPRIM 24G was released in Q1/2022 at a price of 1,999 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2022
Launch Price: 1,999 $ (Reference)
Structure size: 8 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
11290
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
11245

Port Royal (Raytracing)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
14545
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
14488

Speed Way Graphics Score (Raytracing)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
6018
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
5994

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
73 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
70 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
91 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
87 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
130 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
125 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
52 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
50 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
104 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
100 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
156 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
150 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
130 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
128 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
208 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
201 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
208 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
200 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
217041
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
229323

Geekbench 6 - Vulkan

MSI GeForce RTX 3090 Ti SUPRIM 24G MSI GeForce RTX 3090 Ti SUPRIM 24G
24 GB GDDR6X
185840
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
146648

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
