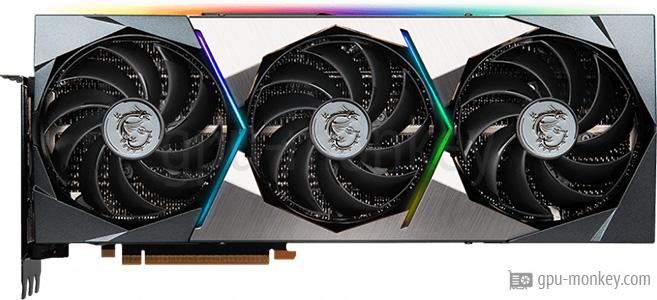

MSI GeForce RTX 3090 Ti SUPRIM X 24G
Benchmark and Specs


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the MSI GeForce RTX 3090 Ti SUPRIM X 24G. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the MSI GeForce RTX 3090 Ti SUPRIM X 24G is 1.965 GHz, so the graphics card achieves an FP32 computing power of 42.26 TFLOPS.

GPU

The MSI GeForce RTX 3090 Ti SUPRIM X 24G is equipped with 84 execution and 10752 shader units. With single precision, a theoretical FP32 computing power of 42.26 TFLOPS is achieved.

Based on: NVIDIA GeForce RTX 3090 Ti
GPU Chip: GA102-350-A1 (Ampere)
Streaming Multiprocessors: 84
Shader: 10752
Render Output Units: 112
Texture Units: 336
Raytracing Cores: 84

Memory

The MSI GeForce RTX 3090 Ti SUPRIM X 24G has a 384 bit wide memory interface, with which a memory bandwidth of 1008 GB/s is achieved. In total, 24 GB GDDR6X graphics memory is available for the graphics card.

Memory Size: 24 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 1008 GB/s
Memory Interface: 384 bit

Clock Speeds

The manufacturer specifies the memory clock of the MSI GeForce RTX 3090 Ti SUPRIM X 24G with 1.560 GHz (base clock) or with 1.965 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 1.560 GHzDeviation vs GPU group-7 %
Boost Clock: 1.965 GHzDeviation vs GPU group+ 6 %
Avg (Game) Clock: 1.950 GHz
Overclocking: Yes

Thermal Design

The MSI GeForce RTX 3090 Ti SUPRIM X 24G has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 92 °C.

TDP: 480 WDeviation vs GPU group+ 7 %
TDP (up): --
Tjunction max: 92 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

The MSI GeForce RTX 3090 Ti SUPRIM X 24G is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the MSI GeForce RTX 3090 Ti SUPRIM X 24G, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The MSI GeForce RTX 3090 Ti SUPRIM X 24G supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: MSI Mystic Light

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the MSI GeForce RTX 3090 Ti SUPRIM X 24G in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The dimensions of the MSI GeForce RTX 3090 Ti SUPRIM X 24G are 338 mm in length, 140 mm in height and 71 mm in width. Thus 4 PCIe-Slots are needed in a case.

Length: 338 mm
Height: 140 mm
Width: 71 mm
Width (Slots): 4 PCIe-Slots
Weight: 2154 g
SFF-Ready: No

Additional data

The MSI GeForce RTX 3090 Ti SUPRIM X 24G is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q1/2022.

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2022
Launch Price: 1,999 $ (Reference)
Structure size: 8 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
11380
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
11245

Port Royal (Raytracing)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
14661
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
14488

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
74 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
70 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
92 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
87 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
132 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
125 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
53 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
50 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
106 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
100 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
158 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
150 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
132 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
128 fps (avg)

2560x1440 (1440p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
211 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
201 fps (avg)

1920x1080 (1080p)

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
211 fps (avg)
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
200 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
220431
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
229323

Geekbench 6 - Vulkan

MSI GeForce RTX 3090 Ti SUPRIM X 24G MSI GeForce RTX 3090 Ti SUPRIM X 24G
24 GB GDDR6X
188743
NVIDIA GeForce RTX 3090 Ti NVIDIA GeForce RTX 3090 Ti
Average of gpu group
146648

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
