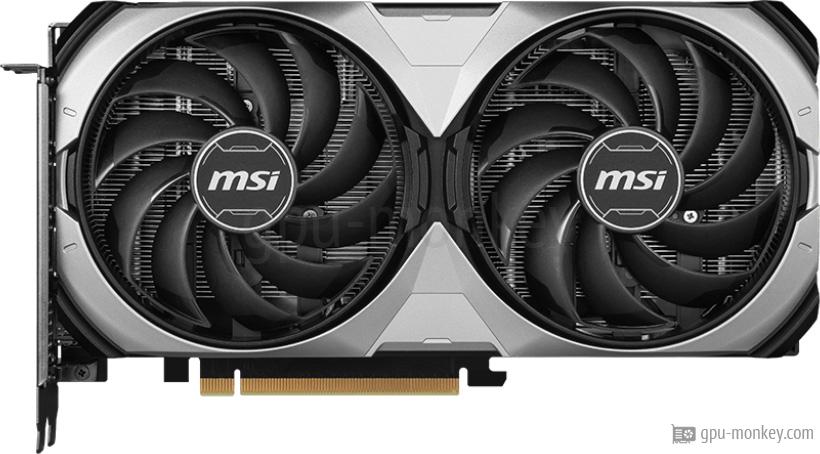

The MSI GeForce RTX 4070 VENTUS 2X E 12G OC has 46 execution units with 5888 shaders. This gives the graphics card a theoretical FP32 computing power of 29.68 TFLOPS.
- GPU Chip
- AD104-250-A1 (Ada Lovelace)
- Streaming Multiprocessors
- 46
- Shader
- 5888
- Render Output Units
- 64
- Texture Units
- 184
- Raytracing Cores
- 46
The MSI GeForce RTX 4070 VENTUS 2X E 12G OC is equipped with 12 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.313 GHz and the speed is 21 Gbps.
- Memory Size
- 12 GB
- Memory Type
- GDDR6X
- Memory Clock
- 1.313 GHz
- Memory Speed
- 21.0 Gbps
- Memory bandwidth
- 504 GB/s
- Memory Interface
- 192 bit
The base frequency of this graphics card is 1.920 GHz and the manufacturer specifies the maximum turbo clock as 2.520 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.920 GHz
- Boost Clock
- 2.520 GHz+2 %
- Overclocking
- Yes
The MSI GeForce RTX 4070 VENTUS 2X E 12G OC is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 200 W.
- TDP
- 200 W
- Tjunction max
- 90 °C
- PCIe-Power
- 1 x 8-Pin
Graphics processor and graphics memory of the MSI GeForce RTX 4070 VENTUS 2X E 12G OC are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 2 x 100 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the MSI GeForce RTX 4070 VENTUS 2X E 12G OC.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1a
- DisplayPort
- 3x DP 1.4a
With the MSI GeForce RTX 4070 VENTUS 2X E 12G OC it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
This area lists the video codecs that the MSI GeForce RTX 4070 VENTUS 2X E 12G OC can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The MSI GeForce RTX 4070 VENTUS 2X E 12G OC needs the space of 3 PCIe-Slots in a case. It is 242 mm long, 125 mm high and 43 mm wide.
- Length
- 242 mm
- Height
- 125 mm
- Width
- 43 mm
- Width (Slots)
- 3 PCIe-Slots
- Weight
- 663 g
- SFF-Ready
- Yes
The MSI GeForce RTX 4070 VENTUS 2X E 12G OC was released in Q4/2023 at a price of 599 $. The graphics card manufactured in 5 nm is connected to the system via PCIe 4.0 x 16 lanes.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q4/2023
- Launch Price
- 599 $ (Reference)
- Structure size
- 5 nm
