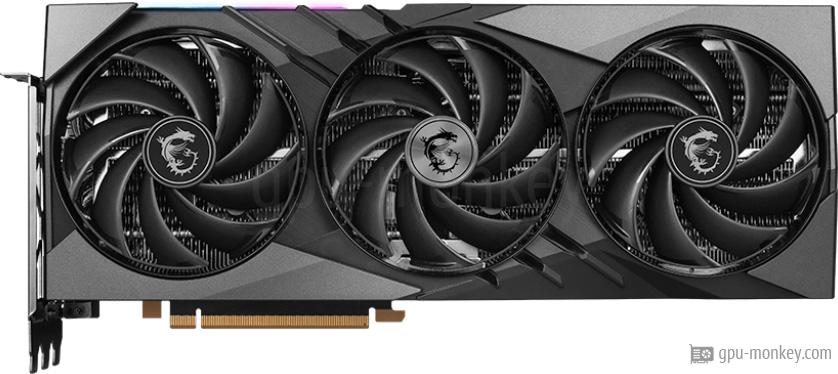

MSI GeForce RTX 4080 16GB GAMING X SLIM
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the MSI GeForce RTX 4080 16GB GAMING X SLIM. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the MSI GeForce RTX 4080 16GB GAMING X SLIM is 2.610 GHz, so the graphics card achieves an FP32 computing power of 50.78 TFLOPS.
GPUThe MSI GeForce RTX 4080 16GB GAMING X SLIM is equipped with 76 execution and 9728 shader units. With single precision, a theoretical FP32 computing power of 50.78 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 4080 |
| GPU Chip: | AD103-300-A1 (Ada Lovelace) |
| Streaming Multiprocessors: | 76 |
| Shader: | 9728 |
| Render Output Units: | 112 |
| Texture Units: | 304 |
| Raytracing Cores: | 76 |
MemoryThe MSI GeForce RTX 4080 16GB GAMING X SLIM has a 256 bit wide memory interface, with which a memory bandwidth of 736 GB/s is achieved. In total, 16 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.400 GHz |
| Memory Speed: | 22.4 Gbps |
| Memory bandwidth: | 736 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the MSI GeForce RTX 4080 16GB GAMING X SLIM with 2.205 GHz (base clock) or with 2.610 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 2.205 GHz |
| Boost Clock: | 2.610 GHz + 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe MSI GeForce RTX 4080 16GB GAMING X SLIM has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 90 °C. |
|
| TDP: | 320 W |
| TDP (up): | -- |
| Tjunction max: | 90 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe MSI GeForce RTX 4080 16GB GAMING X SLIM is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the MSI GeForce RTX 4080 16GB GAMING X SLIM, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 2x HDMI v2.1a |
| DP Ports: | 2x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI GeForce RTX 4080 16GB GAMING X SLIM supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Non addressable LED |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the MSI GeForce RTX 4080 16GB GAMING X SLIM in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the MSI GeForce RTX 4080 16GB GAMING X SLIM are 322 mm in length, 136 mm in height and 62 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
| Length: | 322 mm |
| Height: | 136 mm |
| Width: | 62 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | 1673 g |
| SFF-Ready: | No |
Additional dataThe MSI GeForce RTX 4080 16GB GAMING X SLIM is manufactured in a structure width of 5 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q4/2023. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q4/2023 |
| Launch Price: | 1,199 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | -- |
| Documents: | data sheet |
2.205 GHz, 16 GB (320 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Steel Nomad Light Graphics score
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Steel Nomad Graphics score
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Solar Bay (Raytracing)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
MSI GeForce RTX 4080 16GB GAMING X SLIM
16 GB GDDR6X |
||
