The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC is equipped with 70 execution and 8960 shader units. With single precision, a theoretical FP32 computing power of 44.75 TFLOPS is achieved.
- GPU Chip
- GB203-200-A1 (Blackwell)
- Streaming Multiprocessors
- 70
- Shader
- 8960
- Render Output Units
- 96
- Texture Units
- 280
- Raytracing Cores
- 70
The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC has a 256 bit wide memory interface, with which a memory bandwidth of 896 GB/s is achieved. In total, 16 GB GDDR7 graphics memory is available for the graphics card.
- Memory Size
- 16 GB
- Memory Type
- GDDR7
- Memory Clock
- 1.750 GHz
- Memory Speed
- 28.0 Gbps
- Memory bandwidth
- 896 GB/s
- Memory Interface
- 256 bit
The manufacturer specifies the memory clock of the MSI GeForce RTX 5070 TI VENTUS 3X PZ OC with 2.295 GHz (base clock) or with 2.497 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
- Base Clock
- 2.295 GHz
- Boost Clock
- 2.497 GHz+2 %
- Overclocking
- Yes
The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 88 °C.
- TDP
- 300 W
- Tjunction max
- 88 °C
- PCIe-Power
- 1 x 16-Pin

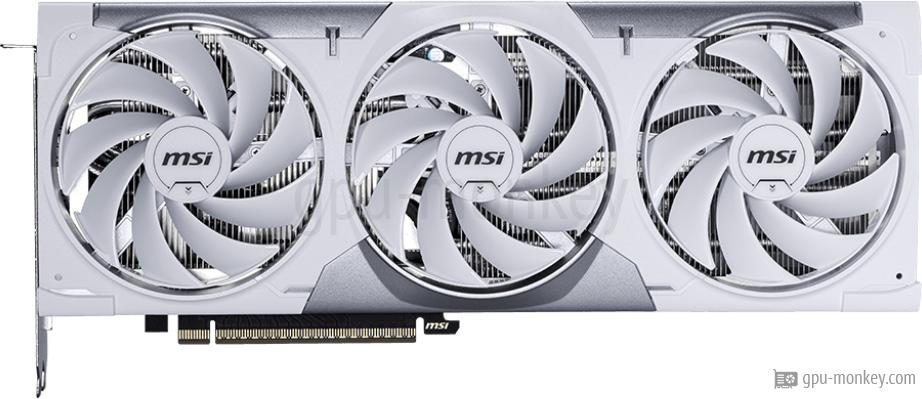

The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 3 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the MSI GeForce RTX 5070 TI VENTUS 3X PZ OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1b
- DisplayPort
- 3x DP 2.1b
The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
Here is a list of which video codecs can be decoded / encoded by the MSI GeForce RTX 5070 TI VENTUS 3X PZ OC in hardware in order to minimize the processor load.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode / Encode
- VP9
- Decode / Encode
- AV1
- Decode / Encode
The dimensions of the MSI GeForce RTX 5070 TI VENTUS 3X PZ OC are 303 mm in length, 121 mm in height and 49 mm in width. Thus 3 PCIe-Slots are needed in a case.
- Length
- 303 mm
- Height
- 121 mm
- Width
- 49 mm
- Width (Slots)
- 3 PCIe-Slots
- Weight
- 1077 g
- SFF-Ready
- Yes
The MSI GeForce RTX 5070 TI VENTUS 3X PZ OC is manufactured in a structure width of 5 nm and has a PCIe 5 x 16 lanes interface. The graphics card was released in Q1/2026.
- GPU Interface
- PCIe 5 x 16
- Release date
- Q1/2026
- Launch Price
- 749 $ (Reference)
- Structure size
- 5 nm
- Part-no
- G507T-16V3ZC
