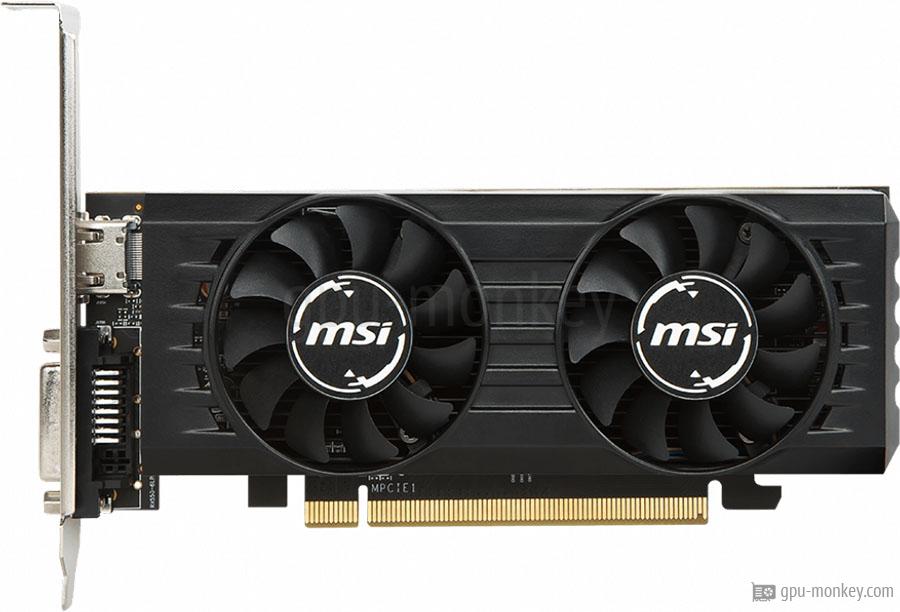

MSI Radeon 550 2GT LP OC
Benchmark and Specs
Last updated:
Description
Here we show you benchmarks and technical data for the MSI Radeon 550 2GT LP OC. The graphics card is based on the AMD Radeon 550 (GCN 4) and has 2 GB GDDR5 of graphics memory with a bandwidth of 56 GB/s.The total 512 shader units of the MSI Radeon 550 2GT LP OC are clocked with a maximum of 1.20 GHz. The graphics card thus achieves an FP32 computing power of 1.23 TFLOPS and was released in Q2/2017.
GPU |
|
| Based on: | AMD Radeon 550 |
| GPU Chip: | Lexa PRO (GCN 4) |
| Execution units: | 8 |
| Shader: | 512 |
| Render Output Units: | 16 |
| Texture Units: | 32 |
| Raytracing Cores: | 0 |
Memory |
|
| Memory Size: | 2 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.500 GHz |
| Memory Speed: | 6 Gbps |
| Memory Bandwith: | 56 GB/s |
| Memory Interface: | 64 bit |
Clock Speeds |
|
| Base Clock: | 1.100 GHz |
| Boost Clock: | 1.203 GHz + 2 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal Design |
|
| TDP: | 50 W |
| TDP (up): | -- |
| Tjunction max: | -- |
| PCIe-Power: | |
Cooler & Fans |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 50 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
Connectivity |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | -- |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
Featureset |
|
| Max. resolution: | 5120x2880 |
| DirectX: | 12 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video Codecs |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
Dimensions |
|
| Length: | 170 mm |
| Height: | 69 mm |
| Width: | 36 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional data |
|
| GPU Interface: | PCIe 3.0 x 8 |
| Release date: | Q2/2017 |
| Launch Price: | 79 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.100 GHz, 2 GB (50 W TDP)
Buy this graphic card at amazon!
Benchmark results
FP32 Performance (Single-precision TFLOPS) - FP32 (TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS. TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second. The larger this number, the faster the graphics card is.
|
Intel Iris Pro Graphics 580
32 GB |
||
|
ASRock Phantom Gaming Radeon RX 550 4G
4 GB GDDR5 |
||
|
GIGABYTE Radeon RX 550 Gaming OC 2G
2 GB GDDR5 |
||
|
MSI Radeon 550 2GT LP OC
2 GB GDDR5 |
||
|
XFX Radeon RX 550 4GB Core Edition
4 GB GDDR5 |
||
|
|
XFX Radeon RX 550 4GB Slim Single Slot Design
4 GB GDDR5 |
||
|
|
XFX Radeon RX 550 2GB Slim Single Slot Design
2 GB GDDR5 |
||
Shadow of the Tomb Raider - 3840x2160 (2160p)
Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).|
|
MSI Radeon 550 2GT LP OC
2 GB GDDR5 |
||
|
AMD Radeon RX 550 (Baffin 10 CU)
2 GB GDDR5 |
||
|
NVIDIA GeForce GT 710
2 GB DDR3 |
||
|
|
NVIDIA GeForce GT 1010
2 GB GDDR5 |
||
Shadow of the Tomb Raider - 2560x1440 (1440p)
Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).|
|
AMD Radeon RX 560 (14 CU)
4 GB GDDR5 |
||
|
|
AMD Radeon RX 550 (Lexa)
2 GB GDDR5 |
||
|
|
AMD Radeon RX 550 (Baffin 8 CU)
2 GB GDDR5 |
||
|
|
MSI Radeon 550 2GT LP OC
2 GB GDDR5 |
||
|
|
AMD Radeon 550
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4 |
||
|
|
NVIDIA GeForce GT 1030
2 GB GDDR5 |
||
Shadow of the Tomb Raider - 1920x1080 (1080p)
Shadow of the Tomb Raider is based on a modified version of the Crystal Dynamics Foundation engine. This engine was already used in the predecessor Rise of the Tomb Raider. The foundation engine supports a realistic representation of water and snow and shows the game characters detailed. The display of hair is also very realistic thanks to the support of TressFX (AMD) or HairWorks (NVIDIA).|
|
AMD Radeon RX 550 (Baffin 10 CU)
2 GB GDDR5 |
||
|
|
AMD Radeon RX 550 (Lexa)
2 GB GDDR5 |
||
|
|
AMD Radeon RX 550 (Baffin 8 CU)
2 GB GDDR5 |
||
|
|
MSI Radeon 550 2GT LP OC
2 GB GDDR5 |
||
|
|
AMD Radeon 550
2 GB GDDR5 |
||
|
|
NVIDIA GeForce GT 1030 (DDR4)
2 GB DDR4 |
||
|
|
NVIDIA GeForce GT 1030
2 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
