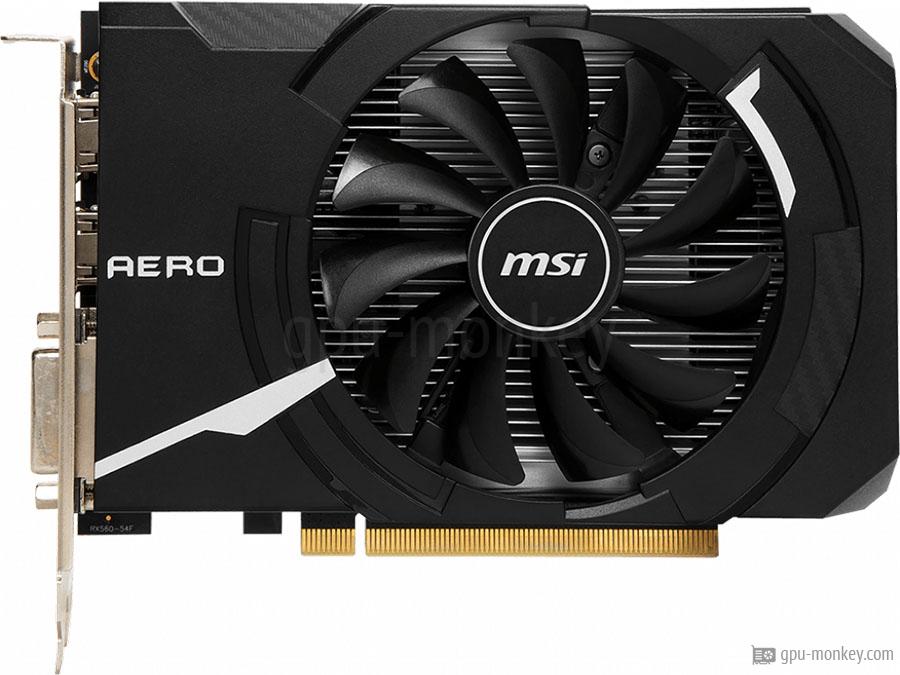

MSI Radeon RX 560 AERO ITX 4G OCV2


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the MSI Radeon RX 560 AERO ITX 4G OCV2. The graphics card is based on the AMD Radeon RX 560 (16 CU) (GCN 4) and has 4 GB GDDR5 graphics memory with a memory bandwidth of 112 GB/s. The MSI Radeon RX 560 AERO ITX 4G OCV2 has 16 execution units with 1024 shaders.

GPU

The MSI Radeon RX 560 AERO ITX 4G OCV2 has 1024 shaders and 16 execution units. The graphics card thus achieves a theoretical FP32 computing power of 2.19 TFLOPS.

Based on: AMD Radeon RX 560 (16 CU)
GPU Chip: Polaris 21 XT (GCN 4)
Streaming Multiprocessors: 16
Shader: 1024
Render Output Units: 16
Texture Units: 64
Raytracing Cores: 0

Memory

The MSI Radeon RX 560 AERO ITX 4G OCV2 can use 4 GB graphics memory of the type GDDR5. The graphics card thus achieves a memory bandwidth of 112 GB/s on a 128 bit wide memory interface.

Memory Size: 4 GB
Memory Type: GDDR5
Memory Clock: 1.750 GHz
Memory Speed: 7.0 Gbps
Memory bandwidth: 112 GB/s
Memory Interface: 128 bit

Clock Speeds

The base clock frequency of the MSI Radeon RX 560 AERO ITX 4G OCV2 is 1.175 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.175 GHz
Boost Clock: 1.196 GHzDeviation vs GPU group-6 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the MSI Radeon RX 560 AERO ITX 4G OCV2 is 60 W. The graphics card is supplied with energy via the connector.

TDP: 60 WDeviation vs GPU group-20 %
TDP (up): --
Tjunction max: 97 °C
PCIe-Power:

Cooler & Fans

The MSI Radeon RX 560 AERO ITX 4G OCV2 has a total of 1 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 1 x 85 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the MSI Radeon RX 560 AERO ITX 4G OCV2.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0
DP Ports: 1x DP v1.4
DVI Ports: 1
VGA Ports: --
USB-C Ports: --

Featureset

The MSI Radeon RX 560 AERO ITX 4G OCV2 has a maximum resolution of 5120x2880 pixels. The graphics card supports the DirectX 12 standard.

Max. resolution: 5120x2880
DirectX: 12
Raytracing: No
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the MSI Radeon RX 560 AERO ITX 4G OCV2 reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Dimensions

The MSI Radeon RX 560 AERO ITX 4G OCV2 is 155 mm long and 112 mm high. With a width of 39 mm, the graphics card requires 2 PCIe-Slots in the case.

Length: 155 mm
Height: 112 mm
Width: 39 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The MSI Radeon RX 560 AERO ITX 4G OCV2 made in 14 nm was published in Q2/2017 for 99 $ (Reference).

GPU Interface: PCIe 3.0 x 8
Release date: Q2/2017
Launch Price: 99 $ (Reference)
Structure size: 14 nm
Part-no: --
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
11 fps (avg)
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
12 fps (avg)

2560x1440 (1440p)

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
32 fps (avg)
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
34 fps (avg)

1920x1080 (1080p)

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
42 fps (avg)
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
45 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
20390
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
21694

Geekbench 6 - Vulkan

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
17984
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
19134

Geekbench 6 - Metal

MSI Radeon RX 560 AERO ITX 4G OCV2 MSI Radeon RX 560 AERO ITX 4G OCV2
4 GB GDDR5
19769
AMD Radeon RX 560 (16 CU) AMD Radeon RX 560 (16 CU)
Average of gpu group
21033

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
