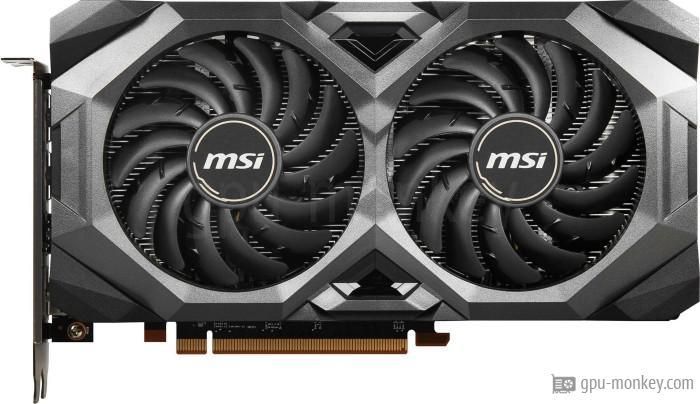

MSI Radeon RX 5700 Mech GP
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the MSI Radeon RX 5700 Mech GP. The graphics card is based on the AMD Radeon RX 5700 (RDNA 1) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The MSI Radeon RX 5700 Mech GP has 36 execution units with 2304 shaders.
GPUThe MSI Radeon RX 5700 Mech GP has 2304 shaders and 36 execution units. The graphics card thus achieves a theoretical FP32 computing power of 7.95 TFLOPS. |
|
| Based on: | AMD Radeon RX 5700 |
| GPU Chip: | Navi 10 (RDNA 1) |
| Streaming Multiprocessors: | 36 |
| Shader: | 2304 |
| Render Output Units: | 64 |
| Texture Units: | 144 |
| Raytracing Cores: | 0 |
MemoryThe MSI Radeon RX 5700 Mech GP can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the MSI Radeon RX 5700 Mech GP is 1.465 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.465 GHz |
| Boost Clock: | 1.725 GHz |
| Avg (Game) Clock: | 1.625 GHz |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI Radeon RX 5700 Mech GP is 180 W. The graphics card is supplied with energy via the 1 x 6-Pin, 1 x 8-Pin connector. |
|
| TDP: | 180 W |
| TDP (up): | 220 W |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe MSI Radeon RX 5700 Mech GP has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 42-43 dB |
ConnectivityUp to 4 screens can be connected to the MSI Radeon RX 5700 Mech GP. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe MSI Radeon RX 5700 Mech GP has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the MSI Radeon RX 5700 Mech GP reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode / Encode |
| AV1: | No |
DimensionsThe MSI Radeon RX 5700 Mech GP is 232 mm long and 126 mm high. With a width of 46 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 232 mm |
| Height: | 126 mm |
| Width: | 46 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | 799 g |
Additional dataThe MSI Radeon RX 5700 Mech GP made in 7 nm was published in Q3/2019 for 379 $. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q3/2019 |
| Launch Price: | 379 $ |
| Structure size: | 7 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.465 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
AMD Radeon RX 5700
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI Radeon RX 5700 Mech GP
8 GB GDDR6 |
||
