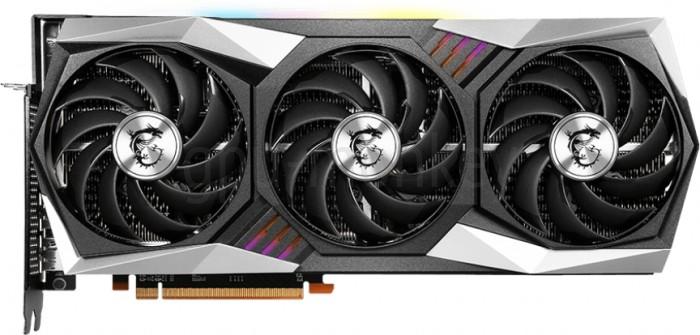

MSI Radeon RX 6900 XT Gaming Trio 16G
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the MSI Radeon RX 6900 XT Gaming Trio 16G are listed on this page. The graphics card is based on the Navi 21 (RDNA 2) graphics chip, which is manufactured with a structure width of 7 nm. The MSI Radeon RX 6900 XT Gaming Trio 16G can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe MSI Radeon RX 6900 XT Gaming Trio 16G has 80 execution units with 5120 shaders. This gives the graphics card a theoretical FP32 computing power of 23.04 TFLOPS. |
|
| Based on: | AMD Radeon RX 6900 XT |
| GPU Chip: | Navi 21 (RDNA 2) |
| Streaming Multiprocessors: | 80 |
| Shader: | 5120 |
| Render Output Units: | 128 |
| Texture Units: | 320 |
| Raytracing Cores: | 80 |
MemoryThe MSI Radeon RX 6900 XT Gaming Trio 16G is equipped with 16 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 2.000 GHz and the speed is 16 Gbps. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 2.000 GHz |
| Memory Speed: | 16.0 Gbps |
| Memory bandwidth: | 512 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base frequency of this graphics card is 1.825 GHz and the manufacturer specifies the maximum turbo clock as 2.250 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.825 GHz |
| Boost Clock: | 2.250 GHz |
| Avg (Game) Clock: | 2.015 GHz |
| Overclocking: | Yes |
Thermal DesignThe MSI Radeon RX 6900 XT Gaming Trio 16G is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 300 W. |
|
| TDP: | 300 W |
| TDP (up): | 345 W |
| Tjunction max: | 100 °C |
| PCIe-Power: | 3 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the MSI Radeon RX 6900 XT Gaming Trio 16G are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 34 dB |
ConnectivityUp to 4 monitors can be operated with the MSI Radeon RX 6900 XT Gaming Trio 16G. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the MSI Radeon RX 6900 XT Gaming Trio 16G it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | MSI Mystic Light |
Supported Video CodecsThis area lists the video codecs that the MSI Radeon RX 6900 XT Gaming Trio 16G can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode |
DimensionsThe MSI Radeon RX 6900 XT Gaming Trio 16G needs the space of 3 PCIe-Slots in a case. It is 324 mm long, 141 mm high and 55 mm wide. |
|
| Length: | 324 mm |
| Height: | 141 mm |
| Width: | 55 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | 1576 g |
Additional dataThe MSI Radeon RX 6900 XT Gaming Trio 16G was released in Q4/2020 at a price of 1,099 $. The graphics card manufactured in 7 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q4/2020 |
| Launch Price: | 1,099 $ |
| Structure size: | 7 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.825 GHz, 16 GB (300 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Port Royal (Raytracing)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
2560x1440 (1440p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
1920x1080 (1080p)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
|
|
AMD Radeon RX 6900 XT
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
MSI Radeon RX 6900 XT Gaming Trio 16G
16 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,638 entries
4,638 entries
Cyberpunk 2077
2,453 entries
2,453 entries
Shadow of the Tomb Raider
4,559 entries
4,559 entries
Battlefield 5
3,937 entries
3,937 entries
GTA 5 Benchmark
2,499 entries
2,499 entries
Crypto-Mining Ethereum Hashrate
3,447 entries
3,447 entries
Crypto-Mining Ergo Hashrate
3,673 entries
3,673 entries
Crypto-Mining Ravencoin Hashrate
3,600 entries
3,600 entries
Crypto-Mining Vertcoin Hashrate
2,445 entries
2,445 entries
FP32 Performance
5,094 entries
5,094 entries
Recommended power supplies for this graphics card
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
EVGA SuperNOVA 750 P2 - 750 W | 6 x | 160 $ | |
|
Corsair TX-M Series TX750M 2017 - 750 W | 4 x | 121 $ | |
|
|
Corsair HX Series HX750 - 750 W | 4 x | 169 $ | |
|
|
EVGA SuperNOVA 750 G3 - 750 W | 6 x | 125 $ | |
|
be quiet! Straight Power 11 - 750 W | 4 x | 139 $ | |
|
|
Corsair RMx Series RM750x White - 750 W | 4 x | 139 $ | |
|
|
EVGA SuperNOVA 750 G5 - 750 W | 6 x | 145 $ | |
|
Seasonic PRIME TX-750 - 750 W | 4 x | 205 $ | |
|
|
Seasonic PRIME GX-750 - 750 W | 4 x | 149 $ | |
|
|
Seasonic PRIME PX-750 - 750 W | 4 x | 169 $ |
