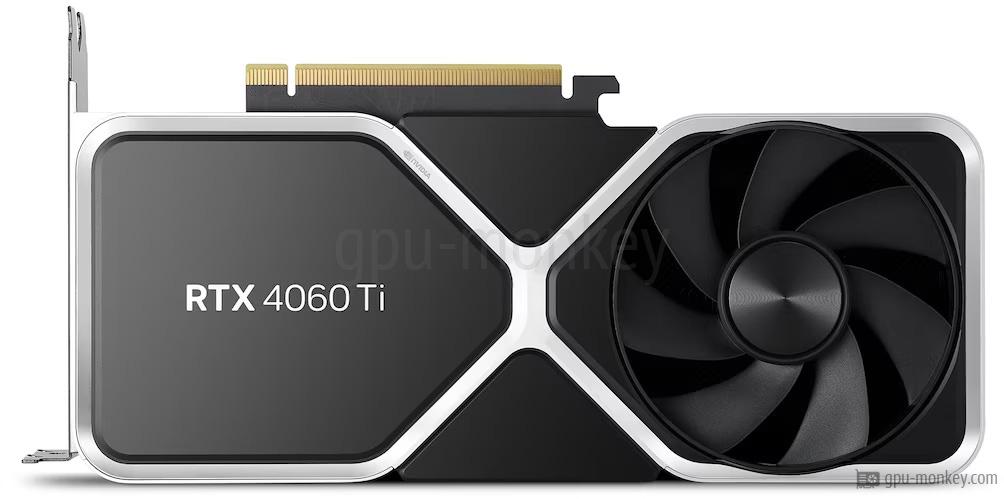

Here we show you benchmarks and technical data for the NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition. The graphics card is based on the NVIDIA GeForce RTX 4060 TI (8GB) (Ada Lovelace) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 288 GB/s. The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition has 34 execution units with 4352 shaders.
GPU
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition has 4352 shaders and 34 execution units. The graphics card thus achieves a theoretical FP32 computing power of 22.06 TFLOPS.
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 288 GB/s on a 128 bit wide memory interface.
Memory Size:
8 GB
Memory Type:
GDDR6
Memory Clock:
2.250 GHz
Memory Speed:
18.0 Gbps
Memory bandwidth:
288 GB/s
Memory Interface:
128 bit
Clock Speeds
The base clock frequency of the NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition is 2.310 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.
Base Clock:
2.310 GHz
Boost Clock:
2.535 GHz
Avg (Game) Clock:
Overclocking:
Yes
Thermal Design
The TDP (Thermal Design Power) of the NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition is 160 W. The graphics card is supplied with energy via the 1 x 12-Pin connector.
TDP:
160 W
TDP (up):
--
Tjunction max:
90 °C
PCIe-Power:
1 x 12-Pin
Cooler & Fans
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition has a total of 2 Axial fans to cool the graphics processor and graphics memory.
Fan-Type:
Axial
Fan 1:
2 x 90 mm
Fan 2:
--
Cooler-Type:
Air cooling
Noise (Idle):
0 dB / Silent
Noise (Load):
--
Connectivity
Up to 4 screens can be connected to the NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition.
Max. Displays:
4
HDCP-Version:
2.3
HDMI Ports:
1x HDMI v2.1a
DP Ports:
3x DP v1.4a
DVI Ports:
--
VGA Ports:
--
USB-C Ports:
--
Featureset
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.
Max. resolution:
7680x4320
DirectX:
12_2 (Ultimate)
Raytracing:
Yes
DLSS / FSR:
Yes
LED:
No LED lighting
Supported Video Codecs
The video codecs accelerated in hardware by the NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition reduce the processor load and ensure lower energy consumption.
h264:
Decode / Encode
h265 / HEVC:
Decode / Encode
VP8:
Decode
VP9:
Decode
AV1:
Decode / Encode
Dimensions
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition is 244 mm long and 98 mm high. With a width of --, the graphics card requires 2 PCIe-Slots in the case.
Length:
244 mm
Height:
98 mm
Width:
--
Width (Slots):
2 PCIe-Slots
Weight:
--
Additional data
The NVIDIA GeForce RTX 4060 Ti 8GB Founders Edition made in 4 nm was published in Q2/2023 for 399 $.
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.
We use the following benchmarks to measure the performance of a graphics card:
