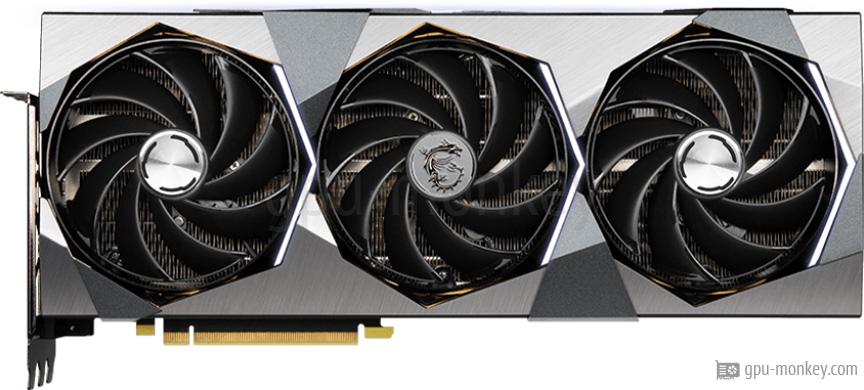

NVIDIA GeForce RTX 4070 Ti


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the NVIDIA GeForce RTX 4070 Ti. The graphics card is based on the NVIDIA GeForce RTX 4070 Ti (Ada Lovelace) and has 12 GB GDDR6X graphics memory with a memory bandwidth of 504 GB/s. The NVIDIA GeForce RTX 4070 Ti has 60 execution units with 7680 shaders.

GPU

The NVIDIA GeForce RTX 4070 Ti has 7680 shaders and 60 execution units. The graphics card thus achieves a theoretical FP32 computing power of 40.09 TFLOPS.

Based on: NVIDIA GeForce RTX 4070 Ti
GPU Chip: AD104-400 (Ada Lovelace)
Streaming Multiprocessors: 60
Shader: 7680
Render Output Units: 80
Texture Units: 240
Raytracing Cores: 60

Memory

The NVIDIA GeForce RTX 4070 Ti can use 12 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 504 GB/s on a 192 bit wide memory interface.

Memory Size: 12 GB
Memory Type: GDDR6X
Memory Clock: 1.313 GHz
Memory Speed: 21.0 Gbps
Memory bandwidth: 504 GB/s
Memory Interface: 192 bit

Clock Speeds

The base clock frequency of the NVIDIA GeForce RTX 4070 Ti is 2.310 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 2.310 GHz
Boost Clock: 2.610 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the NVIDIA GeForce RTX 4070 Ti is 285 W. The graphics card is supplied with energy via the 1 x 16-Pin connector.

TDP: 285 W
TDP (up): --
Tjunction max: 90 °C
PCIe-Power: 1 x 16-Pin

Cooler & Fans

The NVIDIA GeForce RTX 4070 Ti has a total of 0 -- fans to cool the graphics processor and graphics memory.

Fan-Type: --
Fan 1: --
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): --
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the NVIDIA GeForce RTX 4070 Ti.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The NVIDIA GeForce RTX 4070 Ti has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the NVIDIA GeForce RTX 4070 Ti reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The NVIDIA GeForce RTX 4070 Ti is -- long and -- high. With a width of --, the graphics card requires -- in the case.

Length: --
Height: --
Width: --
Width (Slots): --
Weight: --

Additional data

The NVIDIA GeForce RTX 4070 Ti made in 4 nm was published in Q1/2023 for 799 $.

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2023
Launch Price: 799 $
Structure size: 4 nm
Part-no: --
Documents: data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
10673
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
10838

Port Royal (Raytracing)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
13789
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
14002

Speed Way Graphics Score (Raytracing)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
5379
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
5462
View all 3DMark Benchmark (DirectX, Raytracing) benchmark results



Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
55 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
57 fps (avg)

2560x1440 (1440p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
115 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
115 fps (avg)

1920x1080 (1080p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
160 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
160 fps (avg)
View all Cyberpunk 2077 benchmark results



The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
44 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
44 fps (avg)

2560x1440 (1440p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
88 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
88 fps (avg)

1920x1080 (1080p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
142 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
142 fps (avg)
View all The Last of Us Part 1 benchmark results



Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
125 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
125 fps (avg)

2560x1440 (1440p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
200 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
200 fps (avg)

1920x1080 (1080p)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
200 fps (avg)
NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
Average of gpu group
200 fps (avg)
View all Battlefield 5 benchmark results



FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

NVIDIA GeForce RTX 4070 Ti NVIDIA GeForce RTX 4070 Ti
12 GB GDDR6X
40.09
View all FP32 Performance (Single-precision TFLOPS) benchmark results



More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:

Recommended power supplies for this graphics card

Power Supply PCIe 8 Pin (6+2) Launch Price
Seasonic PRIME FANLESS TX-700 Seasonic PRIME FANLESS TX-700 - 700 W 4 x 249 $
EVGA SuperNOVA 750 P2 EVGA SuperNOVA 750 P2 - 750 W 6 x 160 $
Corsair HX Series HX750 Corsair HX Series HX750 - 750 W 4 x 169 $
Corsair TX-M Series TX750M 2017 Corsair TX-M Series TX750M 2017 - 750 W 4 x 121 $
EVGA SuperNOVA 750 G3 EVGA SuperNOVA 750 G3 - 750 W 6 x 125 $
be quiet! Straight Power 11 be quiet! Straight Power 11 - 750 W 4 x 139 $
Corsair RMx Series RM750x White Corsair RMx Series RM750x White - 750 W 4 x 139 $
EVGA SuperNOVA 750 G5 EVGA SuperNOVA 750 G5 - 750 W 6 x 145 $
Seasonic PRIME GX-750 Seasonic PRIME GX-750 - 750 W 4 x 149 $
Seasonic PRIME TX-750 Seasonic PRIME TX-750 - 750 W 4 x 205 $
