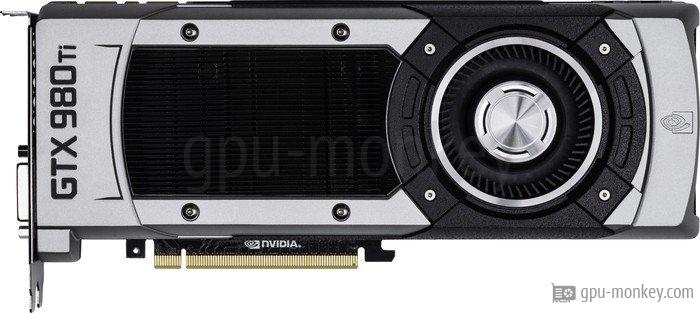

Palit GeForce GTX 980 Ti
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the Palit GeForce GTX 980 Ti. Up to 4 screens with a maximum resolution of up to 4096x2160 can be operated with this graphics card. The maximum turbo clock of the Palit GeForce GTX 980 Ti is 1.076 GHz, so the graphics card achieves an FP32 computing power of 6.06 TFLOPS.
GPUThe Palit GeForce GTX 980 Ti is equipped with 22 execution and 2816 shader units. With single precision, a theoretical FP32 computing power of 6.06 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 980 Ti |
| GPU Chip: | GM200-310-A1 (Maxwell 2.0) |
| Streaming Multiprocessors: | 22 |
| Shader: | 2816 |
| Render Output Units: | 96 |
| Texture Units: | 176 |
| Raytracing Cores: | 0 |
MemoryThe Palit GeForce GTX 980 Ti has a 384 bit wide memory interface, with which a memory bandwidth of 337 GB/s is achieved. In total, 6 GB GDDR5 graphics memory is available for the graphics card. |
|
| Memory Size: | 6 GB |
| Memory Type: | GDDR5 |
| Memory Clock: | 1.753 GHz |
| Memory Speed: | 7.0 Gbps |
| Memory bandwidth: | 337 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the Palit GeForce GTX 980 Ti with 1.000 GHz (base clock) or with 1.076 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.000 GHz |
| Boost Clock: | 1.076 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe Palit GeForce GTX 980 Ti has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 91 °C. |
|
| TDP: | 250 W |
| TDP (up): | -- |
| Tjunction max: | 91 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe Palit GeForce GTX 980 Ti is equipped with 1 Radial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Radial |
| Fan 1: | 1 x 65 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the Palit GeForce GTX 980 Ti, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0 |
| DP Ports: | 3x DP v1.2 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe Palit GeForce GTX 980 Ti supports a maximum resolution of 4096x2160 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 4096x2160 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | No |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the Palit GeForce GTX 980 Ti in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | No |
| VP8: | Decode |
| VP9: | No |
| AV1: | No |
DimensionsThe dimensions of the Palit GeForce GTX 980 Ti are 267 mm in length, 111 mm in height and 38 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 267 mm |
| Height: | 111 mm |
| Width: | 38 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe Palit GeForce GTX 980 Ti is manufactured in a structure width of 28 nm and has a PCIe 3 x 16 lanes interface. The graphics card was released in Q2/2015. |
|
| GPU Interface: | PCIe 3 x 16 |
| Release date: | Q2/2015 |
| Launch Price: | 699 $ |
| Structure size: | 28 nm |
| Part-no: | NE5X98T015JBF |
| Documents: | -- |
1.000 GHz, 6 GB (250 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Palit GeForce GTX 980 Ti
6 GB GDDR5 |
||
|
NVIDIA GeForce GTX 980 Ti
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Palit GeForce GTX 980 Ti
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980 Ti
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
Palit GeForce GTX 980 Ti
6 GB GDDR5 |
||
|
|
NVIDIA GeForce GTX 980 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Palit GeForce GTX 980 Ti
6 GB GDDR5 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,159 entries
5,159 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Geekbench 6
5,151 entries
5,151 entries
FP32 Performance
5,522 entries
5,522 entries
