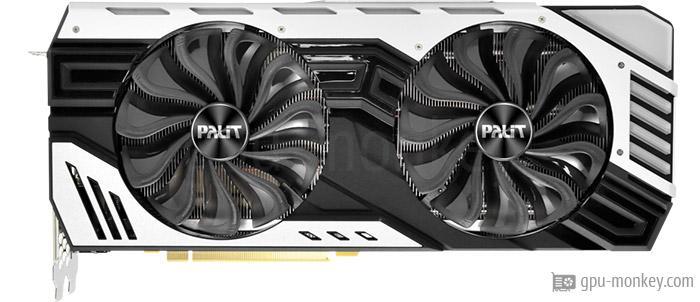

Palit GeForce RTX 2070 SUPER JS LE


Last updated:

Benchmark and Specs

Here we show you benchmarks and technical data for the Palit GeForce RTX 2070 SUPER JS LE. The graphics card is based on the NVIDIA GeForce RTX 2070 SUPER (Turing) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 448 GB/s. The Palit GeForce RTX 2070 SUPER JS LE has 40 execution units with 2560 shaders.

GPU

The Palit GeForce RTX 2070 SUPER JS LE has 2560 shaders and 40 execution units. The graphics card thus achieves a theoretical FP32 computing power of 9.06 TFLOPS.

Based on: NVIDIA GeForce RTX 2070 SUPER
GPU Chip: TU104 (Turing)
Streaming Multiprocessors: 40
Shader: 2560
Render Output Units: 64
Texture Units: 160
Raytracing Cores: 40

Memory

The Palit GeForce RTX 2070 SUPER JS LE can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 448 GB/s on a 256 bit wide memory interface.

Memory Size: 8 GB
Memory Type: GDDR6
Memory Clock: 1.750 GHz
Memory Speed: 14.0 Gbps
Memory bandwidth: 448 GB/s
Memory Interface: 256 bit

Clock Speeds

The base clock frequency of the Palit GeForce RTX 2070 SUPER JS LE is 1.605 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.605 GHz
Boost Clock: 1.770 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the Palit GeForce RTX 2070 SUPER JS LE is 215 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 215 W
TDP (up): --
Tjunction max: 88 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The Palit GeForce RTX 2070 SUPER JS LE has a total of 2 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 2 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 screens can be connected to the Palit GeForce RTX 2070 SUPER JS LE.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The Palit GeForce RTX 2070 SUPER JS LE has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

The video codecs accelerated in hardware by the Palit GeForce RTX 2070 SUPER JS LE reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: No

Dimensions

The Palit GeForce RTX 2070 SUPER JS LE is 292 mm long and 130 mm high. With a width of 60 mm, the graphics card requires 3 PCIe-Slots in the case.

Length: 292 mm
Height: 130 mm
Width: 60 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The Palit GeForce RTX 2070 SUPER JS LE made in 12 nm was published in Q4/2019 for 499 $ (Reference).

GPU Interface: PCIe 3.0 x 16
Release date: Q4/2019
Launch Price: 499 $ (Reference)
Structure size: 12 nm
Part-no: NE6207S019P2-1040J
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
35 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
36 fps (avg)

2560x1440 (1440p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
42 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
43 fps (avg)

1920x1080 (1080p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
62 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
63 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

2560x1440 (1440p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
34 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
34 fps (avg)

1920x1080 (1080p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
74 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
74 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
58 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
56 fps (avg)

2560x1440 (1440p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
106 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
101 fps (avg)

1920x1080 (1080p)

Palit GeForce RTX 2070 SUPER JS LE Palit GeForce RTX 2070 SUPER JS LE
8 GB GDDR6
148 fps (avg)
NVIDIA GeForce RTX 2070 SUPER NVIDIA GeForce RTX 2070 SUPER
Average of gpu group
133 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
