The Palit GeForce RTX 2080 SUPER GP OC is equipped with 48 execution and 3072 shader units. With single precision, a theoretical FP32 computing power of 11.33 TFLOPS is achieved.
- GPU Chip
- TU104 (Turing)
- Streaming Multiprocessors
- 48
- Shader
- 3072
- Render Output Units
- 64
- Texture Units
- 192
- Raytracing Cores
- 48
The Palit GeForce RTX 2080 SUPER GP OC has a 256 bit wide memory interface, with which a memory bandwidth of 496 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.938 GHz
- Memory Speed
- 15.5 Gbps
- Memory bandwidth
- 496 GB/s
- Memory Interface
- 256 bit
The manufacturer specifies the memory clock of the Palit GeForce RTX 2080 SUPER GP OC with 1.650 GHz (base clock) or with 1.845 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
- Base Clock
- 1.650 GHz
- Boost Clock
- 1.845 GHz+2 %
- Avg (Game) Clock
- 1.815 GHz
- Overclocking
- Yes
The Palit GeForce RTX 2080 SUPER GP OC has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 89 °C.
- TDP
- 250 W
- TDP (up)
- 280 W
- Tjunction max
- 89 °C
- PCIe-Power
- 1 x 6-Pin, 1 x 8-Pin

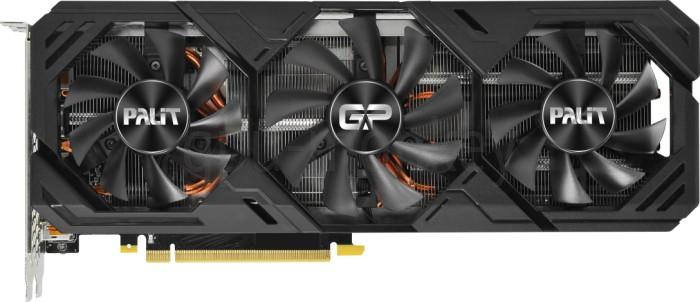

The Palit GeForce RTX 2080 SUPER GP OC is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 3 x 80 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
- Noise (Load)
- 44 dB
Up to 4 screens can be connected to the Palit GeForce RTX 2080 SUPER GP OC, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version.
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 3x DP 1.4a
The Palit GeForce RTX 2080 SUPER GP OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
Here is a list of which video codecs can be decoded / encoded by the Palit GeForce RTX 2080 SUPER GP OC in hardware in order to minimize the processor load.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The dimensions of the Palit GeForce RTX 2080 SUPER GP OC are 288 mm in length, 112 mm in height and 50 mm in width. Thus 3 PCIe-Slots are needed in a case.
- Length
- 288 mm
- Height
- 112 mm
- Width
- 50 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The Palit GeForce RTX 2080 SUPER GP OC is manufactured in a structure width of 12 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q3/2019.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q3/2019
- Launch Price
- 799 $
- Structure size
- 12 nm
- Part-no
- NE6208SS19P2-180T
