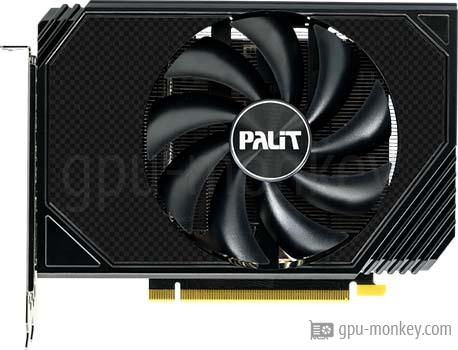

The Palit GeForce RTX 3050 StormX OC is equipped with 20 execution and 2560 shader units. With single precision, a theoretical FP32 computing power of 9.25 TFLOPS is achieved.
- GPU Chip
- GA106-150-A1 (Ampere)
- Streaming Multiprocessors
- 20
- Shader
- 2560
- Render Output Units
- 48
- Texture Units
- 80
- Raytracing Cores
- 20
The Palit GeForce RTX 3050 StormX OC has a 128 bit wide memory interface, with which a memory bandwidth of 224 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 224 GB/s
- Memory Interface
- 128 bit
The manufacturer specifies the memory clock of the Palit GeForce RTX 3050 StormX OC with 1.552 GHz (base clock) or with 1.807 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
- Base Clock
- 1.552 GHz
- Boost Clock
- 1.807 GHz+2 %
- Overclocking
- Yes
The Palit GeForce RTX 3050 StormX OC has 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C.
- TDP
- 130 W
- Tjunction max
- 93 °C
- PCIe-Power
- 1 x 8-Pin
The Palit GeForce RTX 3050 StormX OC is equipped with 1 Axial main fans, which are used to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 1 x 100 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the Palit GeForce RTX 3050 StormX OC, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 3x DP 1.4a
The Palit GeForce RTX 3050 StormX OC supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
Here is a list of which video codecs can be decoded / encoded by the Palit GeForce RTX 3050 StormX OC in hardware in order to minimize the processor load.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The dimensions of the Palit GeForce RTX 3050 StormX OC are 170 mm in length, 125 mm in height and 40 mm in width. Thus 2 PCIe-Slots are needed in a case.
- Length
- 170 mm
- Height
- 125 mm
- Width
- 40 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The Palit GeForce RTX 3050 StormX OC is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q1/2022.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q1/2022
- Launch Price
- 249 $ (Reference)
- Structure size
- 8 nm
- Part-no
- NE63050S19P1-190AF
