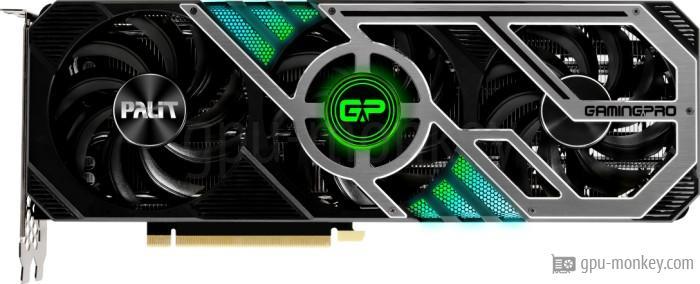

The Palit GeForce RTX 3060 Ti GamingPro V1 LHR has 38 execution units with 4864 shaders. This gives the graphics card a theoretical FP32 computing power of 16.20 TFLOPS.
- GPU Chip
- GA104-202-A1 (Ampere)
- Streaming Multiprocessors
- 38
- Shader
- 4864
- Render Output Units
- 80
- Texture Units
- 152
- Raytracing Cores
- 38
The Palit GeForce RTX 3060 Ti GamingPro V1 LHR is equipped with 8 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.
- Memory Size
- 8 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 448 GB/s
- Memory Interface
- 256 bit
The base frequency of this graphics card is 1.410 GHz and the manufacturer specifies the maximum turbo clock as 1.665 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.410 GHz
- Boost Clock
- 1.665 GHz
- Overclocking
- Yes
The Palit GeForce RTX 3060 Ti GamingPro V1 LHR is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 220 W.
- TDP
- 220 W+10 %
- Tjunction max
- 93 °C
- PCIe-Power
- 2 x 8-Pin
Graphics processor and graphics memory of the Palit GeForce RTX 3060 Ti GamingPro V1 LHR are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 3 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
- Noise (Load)
- 35-36 dB
Up to 4 monitors can be operated with the Palit GeForce RTX 3060 Ti GamingPro V1 LHR.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1
- DisplayPort
- 3x DP 1.4a
With the Palit GeForce RTX 3060 Ti GamingPro V1 LHR it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- Addressable LED
This area lists the video codecs that the Palit GeForce RTX 3060 Ti GamingPro V1 LHR can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- Decode
The Palit GeForce RTX 3060 Ti GamingPro V1 LHR needs the space of 3 PCIe-Slots in a case. It is 294 mm long, 112 mm high and 60 mm wide.
- Length
- 294 mm
- Height
- 112 mm
- Width
- 60 mm
- Width (Slots)
- 3 PCIe-Slots
- SFF-Ready
- No
The Palit GeForce RTX 3060 Ti GamingPro V1 LHR was released in Q4/2020 at a price of 459 $. The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.
- GPU Interface
- PCIe 4.0 x 16
- Release date
- Q4/2020
- Launch Price
- 459 $
- Structure size
- 8 nm
- Part-no
- NE6306T019P2-1041A
