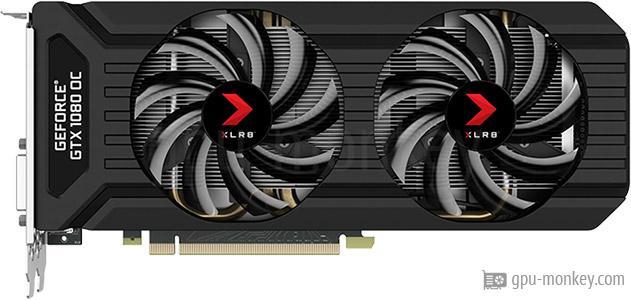

PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan. The graphics card is based on the NVIDIA GeForce GTX 1080 (Pascal) and has 8 GB GDDR5X graphics memory with a memory bandwidth of 320 GB/s. The PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan has 20 execution units with 2560 shaders.
GPUThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan has 2560 shaders and 20 execution units. The graphics card thus achieves a theoretical FP32 computing power of 9.00 TFLOPS. |
|
| Based on: | NVIDIA GeForce GTX 1080 |
| GPU Chip: | GP104-400-A1 / GP104-410-A1 (Pascal) |
| Streaming Multiprocessors: | 20 |
| Shader: | 2560 |
| Render Output Units: | 64 |
| Texture Units: | 160 |
| Raytracing Cores: | 0 |
MemoryThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan can use 8 GB graphics memory of the type GDDR5X. The graphics card thus achieves a memory bandwidth of 320 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5X |
| Memory Clock: | 1.251 GHz |
| Memory Speed: | 10.0 Gbps |
| Memory bandwidth: | 320 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan is 1.620 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.620 GHz + 1 % |
| Boost Clock: | 1.759 GHz+ 2 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan is 180 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 180 W |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan is 267 mm long and 112 mm high. With a width of 42 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 267 mm |
| Height: | 112 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan made in 16 nm was published in Q2/2016 for 599 $ (Reference). |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q2/2016 |
| Launch Price: | 599 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | VCGGTX10808XGPB-OC-BB |
| Documents: | data sheet |
1.620 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
2560x1440 (1440p)
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
1920x1080 (1080p)
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
PNY GeForce GTX 1080 XLR8 Gaming OC Twin Fan
8 GB GDDR5X |
||
