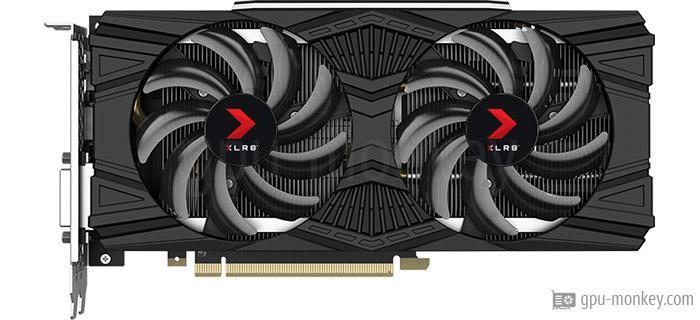

The PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) has 30 execution units with 1920 shaders. This gives the graphics card a theoretical FP32 computing power of 7.03 TFLOPS.
- GPU Chip
- TU106 (Turing)
- Streaming Multiprocessors
- 30
- Shader
- 1920
- Render Output Units
- 48
- Texture Units
- 120
- Raytracing Cores
- 30
The PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) is equipped with 6 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 1.750 GHz and the speed is 14 Gbps.
- Memory Size
- 6 GB
- Memory Type
- GDDR6
- Memory Clock
- 1.750 GHz
- Memory Speed
- 14.0 Gbps
- Memory bandwidth
- 336 GB/s
- Memory Interface
- 192 bit
The base frequency of this graphics card is 1.365 GHz and the manufacturer specifies the maximum turbo clock as 1.830 GHz. If supported (see below), the performance can be further increased by overclocking.
- Base Clock
- 1.365 GHz
- Boost Clock
- 1.830 GHz+9 %
- Overclocking
- Yes
The PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) is powered by 1 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 190 W.
- TDP
- 190 W+19 %
- Tjunction max
- 88 °C
- PCIe-Power
- 1 x 8-Pin
Graphics processor and graphics memory of the PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) are cooled by a Air cooling.
- Fan-Type
- Axial
- Fan 1
- 2 x 90 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 monitors can be operated with the PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan).
- Max. Displays
- 4
- HDCP
- 2.2
- HDMI
- 1x HDMI 2.0b
- DisplayPort
- 1x DP 1.4a
- DVI
- 1
With the PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
This area lists the video codecs that the PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode
- VP9
- Decode
- AV1
- No
The PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) needs the space of 2 PCIe-Slots in a case. It is 235 mm long, 112 mm high and 40 mm wide.
- Length
- 235 mm
- Height
- 112 mm
- Width
- 40 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- No
The PNY GeForce RTX 2060 6GB XLR8 Gaming OC Edition (Twin Fan) was released in Q1/2019 at a price of 349 $. The graphics card manufactured in 12 nm is connected to the system via PCIe 3.0 x 16 lanes.
- GPU Interface
- PCIe 3.0 x 16
- Release date
- Q1/2019
- Launch Price
- 349 $ (Reference)
- Structure size
- 12 nm
- Part-no
- VCG20606DFPPB-O
