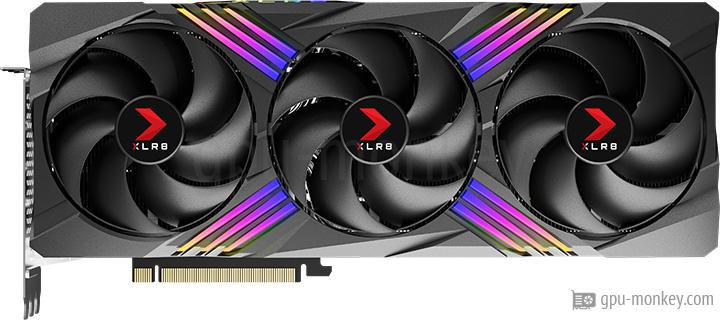

PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked. The graphics card is based on the NVIDIA GeForce RTX 4090 (Ada Lovelace) and has 24 GB GDDR6X graphics memory with a memory bandwidth of 1008 GB/s. The PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked has 128 execution units with 16384 shaders.
GPUThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked has 16384 shaders and 128 execution units. The graphics card thus achieves a theoretical FP32 computing power of 84.05 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 4090 |
| GPU Chip: | AD102-300-A1 (Ada Lovelace) |
| Streaming Multiprocessors: | 128 |
| Shader: | 16384 |
| Render Output Units: | 176 |
| Texture Units: | 512 |
| Raytracing Cores: | 128 |
MemoryThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked can use 24 GB graphics memory of the type GDDR6X. The graphics card thus achieves a memory bandwidth of 1008 GB/s on a 384 bit wide memory interface. |
|
| Memory Size: | 24 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.313 GHz |
| Memory Speed: | 21.0 Gbps |
| Memory bandwidth: | 1008 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base clock frequency of the PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked is 2.235 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 2.235 GHz |
| Boost Clock: | 2.565 GHz + 2 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked is 450 W. The graphics card is supplied with energy via the 1 x 16-Pin connector. |
|
| TDP: | 450 W |
| TDP (up): | 450 W -25 % |
| Tjunction max: | 90 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 100 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | Addressable LED |
Supported Video CodecsThe video codecs accelerated in hardware by the PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked is 332 mm long and 137 mm high. With a width of 71 mm, the graphics card requires 4 PCIe-Slots in the case. |
|
| Length: | 332 mm |
| Height: | 137 mm |
| Width: | 71 mm |
| Width (Slots): | 4 PCIe-Slots |
| Weight: | -- |
Additional dataThe PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked made in 5 nm was published in Q4/2022 for 1,599 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q4/2022 |
| Launch Price: | 1,599 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | VCG409024TFXXPB1-O |
| Documents: | data sheet |
2.235 GHz, 24 GB (450 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Port Royal (Raytracing)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
2560x1440 (1440p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
1920x1080 (1080p)
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
PNY GeForce RTX 4090 24GB XLR8 Gaming VERTO EPIC-X Overclocked
24 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 4090
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
