The PNY GeForce RTX 5070 Slim Dual Fan is equipped with 48 execution and 6144 shader units. With single precision, a theoretical FP32 computing power of 30.86 TFLOPS is achieved.
- GPU Chip
- GB205-300-A1 (Blackwell)
- Streaming Multiprocessors
- 48
- Shader
- 6144
- Render Output Units
- 64
- Texture Units
- 192
- Raytracing Cores
- 48
The PNY GeForce RTX 5070 Slim Dual Fan has a 192 bit wide memory interface, with which a memory bandwidth of 672 GB/s is achieved. In total, 12 GB GDDR7 graphics memory is available for the graphics card.
- Memory Size
- 12 GB
- Memory Type
- GDDR7
- Memory Clock
- 1.750 GHz
- Memory Speed
- 28.0 Gbps
- Memory bandwidth
- 672 GB/s
- Memory Interface
- 192 bit
The manufacturer specifies the memory clock of the PNY GeForce RTX 5070 Slim Dual Fan with 2.165 GHz (base clock) or with 2.512 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.
- Base Clock
- 2.165 GHz
- Boost Clock
- 2.512 GHz
- Overclocking
- Yes
The PNY GeForce RTX 5070 Slim Dual Fan has 1 x 16-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 85 °C.
- TDP
- 250 W
- Tjunction max
- 85 °C
- PCIe-Power
- 1 x 16-Pin

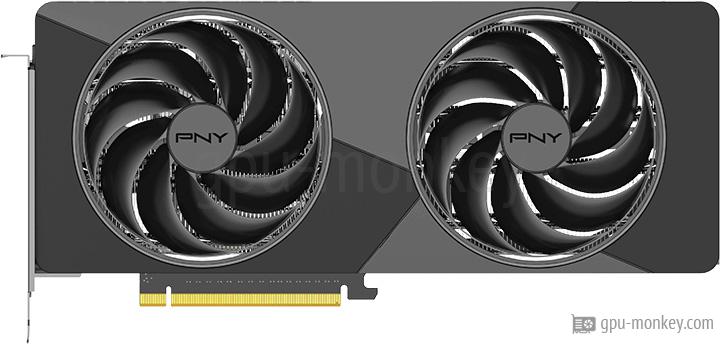

The PNY GeForce RTX 5070 Slim Dual Fan is equipped with 2 Axial main fans, which are used to cool the graphics processor and graphics memory.
- Fan-Type
- Axial
- Fan 1
- 2 x 100 mm
- Cooler-Type
- Air cooling
- Noise (Idle)
- 0 dB / Silent
Up to 4 screens can be connected to the PNY GeForce RTX 5070 Slim Dual Fan, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.
- Max. Displays
- 4
- HDCP
- 2.3
- HDMI
- 1x HDMI 2.1b
- DisplayPort
- 3x DP 2.1b
The PNY GeForce RTX 5070 Slim Dual Fan supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).
- Max. resolution
- 7680x4320
- DirectX
- 12_2 (Ultimate)
- Raytracing
- Yes
- DLSS / FSR
- Yes
- LED
- No LED lighting
Here is a list of which video codecs can be decoded / encoded by the PNY GeForce RTX 5070 Slim Dual Fan in hardware in order to minimize the processor load.
- h264
- Decode / Encode
- h265 / HEVC
- Decode / Encode
- VP8
- Decode / Encode
- VP9
- Decode / Encode
- AV1
- Decode / Encode
The dimensions of the PNY GeForce RTX 5070 Slim Dual Fan are 290 mm in length, 128 mm in height and 40 mm in width. Thus 2 PCIe-Slots are needed in a case.
- Length
- 290 mm
- Height
- 128 mm
- Width
- 40 mm
- Width (Slots)
- 2 PCIe-Slots
- SFF-Ready
- Yes
The PNY GeForce RTX 5070 Slim Dual Fan is manufactured in a structure width of 5 nm and has a PCIe 5 x 16 lanes interface. The graphics card was released in Q4/2025.
- GPU Interface
- PCIe 5 x 16
- Release date
- Q4/2025
- Launch Price
- 549 $ (Reference)
- Structure size
- 5 nm
- Part-no
- VCG507012DFSXPB1
