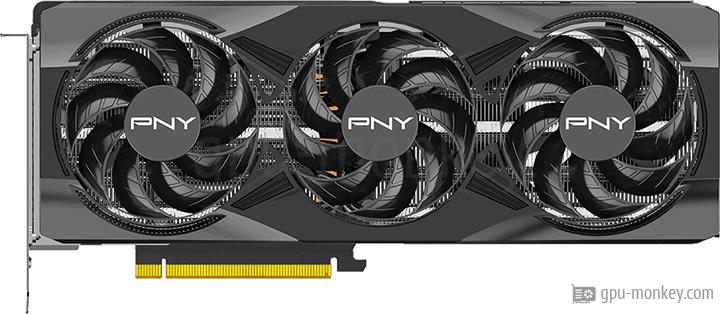

PNY GeForce RTX 5070 TI Triple Fan Overclocked
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the PNY GeForce RTX 5070 TI Triple Fan Overclocked. The graphics card is based on the NVIDIA GeForce RTX 5070 TI (Blackwell) and has 16 GB GDDR7 graphics memory with a memory bandwidth of 896 GB/s. The PNY GeForce RTX 5070 TI Triple Fan Overclocked has 70 execution units with 8960 shaders.
GPUThe PNY GeForce RTX 5070 TI Triple Fan Overclocked has 8960 shaders and 70 execution units. The graphics card thus achieves a theoretical FP32 computing power of 46.09 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 5070 TI |
| GPU Chip: | GB203-200-A1 (Blackwell) |
| Streaming Multiprocessors: | 70 |
| Shader: | 8960 |
| Render Output Units: | 96 |
| Texture Units: | 280 |
| Raytracing Cores: | 70 |
MemoryThe PNY GeForce RTX 5070 TI Triple Fan Overclocked can use 16 GB graphics memory of the type GDDR7. The graphics card thus achieves a memory bandwidth of 896 GB/s on a 256 bit wide memory interface. |
|
| Memory Size: | 16 GB |
| Memory Type: | GDDR7 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 28.0 Gbps |
| Memory bandwidth: | 896 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe base clock frequency of the PNY GeForce RTX 5070 TI Triple Fan Overclocked is 2.295 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 2.295 GHz |
| Boost Clock: | 2.572 GHz + 5 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the PNY GeForce RTX 5070 TI Triple Fan Overclocked is 300 W. The graphics card is supplied with energy via the 1 x 16-Pin connector. |
|
| TDP: | 300 W |
| TDP (up): | -- |
| Tjunction max: | 88 °C |
| PCIe-Power: | 1 x 16-Pin |
Cooler & FansThe PNY GeForce RTX 5070 TI Triple Fan Overclocked has a total of 3 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the PNY GeForce RTX 5070 TI Triple Fan Overclocked. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1b |
| DP Ports: | 3x DP v2.1b |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe PNY GeForce RTX 5070 TI Triple Fan Overclocked has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the PNY GeForce RTX 5070 TI Triple Fan Overclocked reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode / Encode |
| VP9: | Decode / Encode |
| AV1: | Decode / Encode |
DimensionsThe PNY GeForce RTX 5070 TI Triple Fan Overclocked is 300 mm long and 120 mm high. With a width of 60 mm, the graphics card requires 3 PCIe-Slots in the case. |
|
| Length: | 300 mm |
| Height: | 120 mm |
| Width: | 60 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
| SFF-Ready: | No |
Additional dataThe PNY GeForce RTX 5070 TI Triple Fan Overclocked made in 5 nm was published in Q1/2025 for 749 $ (Reference). |
|
| GPU Interface: | PCIe 5 x 16 |
| Release date: | Q1/2025 |
| Launch Price: | 749 $ (Reference) |
| Structure size: | 5 nm |
| Part-no: | VCG5070T16TFXPB1-O |
| Documents: | data sheet |
2.295 GHz, 16 GB (300 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Steel Nomad Light Graphics score
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Steel Nomad Graphics score
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Port Royal (Raytracing)
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
Solar Bay (Raytracing)
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
|
|
NVIDIA GeForce RTX 5070 TI
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
PNY GeForce RTX 5070 TI Triple Fan Overclocked
16 GB GDDR7 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
