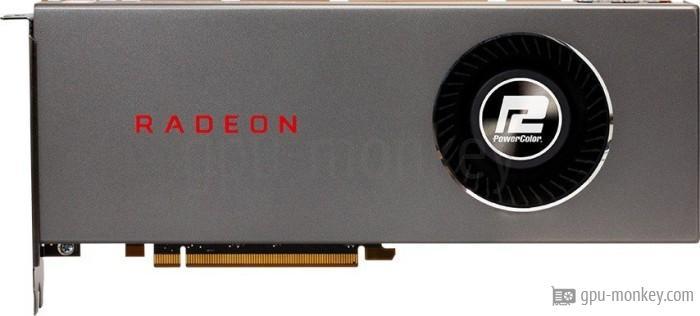

PowerColor Radeon RX 5700
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the PowerColor Radeon RX 5700. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the PowerColor Radeon RX 5700 is 1.725 GHz, so the graphics card achieves an FP32 computing power of 7.95 TFLOPS.
GPUThe PowerColor Radeon RX 5700 is equipped with 36 execution and 2304 shader units. With single precision, a theoretical FP32 computing power of 7.95 TFLOPS is achieved. |
|
| Based on: | AMD Radeon RX 5700 |
| GPU Chip: | Navi 10 (RDNA 1) |
| Streaming Multiprocessors: | 36 |
| Shader: | 2304 |
| Render Output Units: | 64 |
| Texture Units: | 144 |
| Raytracing Cores: | 0 |
MemoryThe PowerColor Radeon RX 5700 has a 256 bit wide memory interface, with which a memory bandwidth of 448 GB/s is achieved. In total, 8 GB GDDR6 graphics memory is available for the graphics card. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 448 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the PowerColor Radeon RX 5700 with 1.465 GHz (base clock) or with 1.725 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.465 GHz |
| Boost Clock: | 1.725 GHz |
| Avg (Game) Clock: | 1.625 GHz |
| Overclocking: | Yes |
Thermal DesignThe PowerColor Radeon RX 5700 has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 98 °C. |
|
| TDP: | 180 W |
| TDP (up): | 220 W |
| Tjunction max: | 98 °C |
| PCIe-Power: | 1 x 6-Pin, 1 x 8-Pin |
Cooler & FansThe PowerColor Radeon RX 5700 is equipped with 1 Radial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Radial |
| Fan 1: | 1 x 80 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | 46-47 dB |
ConnectivityUp to 4 screens can be connected to the PowerColor Radeon RX 5700, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe PowerColor Radeon RX 5700 supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the PowerColor Radeon RX 5700 in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode / Encode |
| AV1: | No |
DimensionsThe dimensions of the PowerColor Radeon RX 5700 are 281 mm in length, 126 mm in height and 42 mm in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 281 mm |
| Height: | 126 mm |
| Width: | 42 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe PowerColor Radeon RX 5700 is manufactured in a structure width of 7 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q3/2019. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q3/2019 |
| Launch Price: | 329 $ |
| Structure size: | 7 nm |
| Part-no: | -- |
| Documents: | data sheet |
1.465 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
AMD Radeon RX 5700
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
2560x1440 (1440p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
1920x1080 (1080p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
2560x1440 (1440p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
1920x1080 (1080p)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
|
|
AMD Radeon RX 5700
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
PowerColor Radeon RX 5700
8 GB GDDR6 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,638 entries
4,638 entries
Cyberpunk 2077
2,453 entries
2,453 entries
Shadow of the Tomb Raider
4,559 entries
4,559 entries
Battlefield 5
3,937 entries
3,937 entries
GTA 5 Benchmark
2,499 entries
2,499 entries
Crypto-Mining Ethereum Hashrate
3,447 entries
3,447 entries
Crypto-Mining Ergo Hashrate
3,673 entries
3,673 entries
Crypto-Mining Ravencoin Hashrate
3,600 entries
3,600 entries
Crypto-Mining Vertcoin Hashrate
2,445 entries
2,445 entries
FP32 Performance
5,094 entries
5,094 entries
