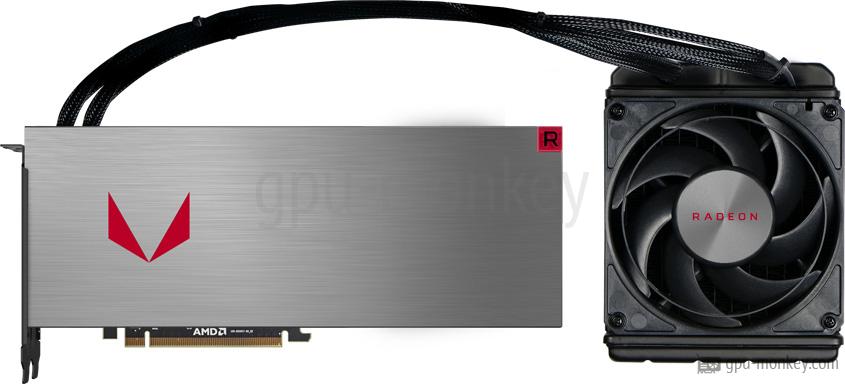

PowerColor Radeon RX Vega 64 Liquid
Benchmark and Specs
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the PowerColor Radeon RX Vega 64 Liquid are listed on this page. The graphics card is based on the Vega 10 XT (GCN 5) graphics chip, which is manufactured with a structure width of 14 nm. The PowerColor Radeon RX Vega 64 Liquid can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe PowerColor Radeon RX Vega 64 Liquid has 64 execution units with 4096 shaders. This gives the graphics card a theoretical FP32 computing power of 13.73 TFLOPS. |
|
| Based on: | AMD RX Vega 64 |
| GPU Chip: | Vega 10 XT (GCN 5) |
| Streaming Multiprocessors: | 64 |
| Shader: | 4096 |
| Render Output Units: | 64 |
| Texture Units: | 256 |
| Raytracing Cores: | 0 |
MemoryThe PowerColor Radeon RX Vega 64 Liquid is equipped with 8 GB graphics memory of the type HBM2. The memory clock of the graphics card is 0.945 GHz and the speed is 1.89 Gbps. |
|
| Memory Size: | 8 GB |
| Memory Type: | HBM2 |
| Memory Clock: | 0.945 GHz |
| Memory Speed: | 1.9 Gbps |
| Memory bandwidth: | 484 GB/s |
| Memory Interface: | 2048 bit |
Clock SpeedsThe base frequency of this graphics card is 1.406 GHz and the manufacturer specifies the maximum turbo clock as 1.677 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.406 GHz + 13 % |
| Boost Clock: | 1.677 GHz+ 8 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe PowerColor Radeon RX Vega 64 Liquid is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 295 W. |
|
| TDP: | 295 W |
| TDP (up): | -- |
| Tjunction max: | 100 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the PowerColor Radeon RX Vega 64 Liquid are cooled by a Air cooling. |
|
| Fan-Type: | Axial (Radiator) |
| Fan 1: | 1 x 120 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the PowerColor Radeon RX Vega 64 Liquid. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the PowerColor Radeon RX Vega 64 Liquid it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_1 is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the PowerColor Radeon RX Vega 64 Liquid can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode / Encode |
| AV1: | No |
DimensionsThe PowerColor Radeon RX Vega 64 Liquid needs the space of 2 PCIe-Slots in a case. It is 283 mm long, 130 mm high and 40 mm wide. |
|
| Length: | 283 mm |
| Height: | 130 mm |
| Width: | 40 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe PowerColor Radeon RX Vega 64 Liquid was released in Q3/2017 at a price of 499 $ (Reference). The graphics card manufactured in 14 nm is connected to the system via PCIe 3.0 x 16 lanes. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q3/2017 |
| Launch Price: | 499 $ (Reference) |
| Structure size: | 14 nm |
| Part-no: | AXRX VEGA 64 8GBHBM2-3DHW |
| Documents: | data sheet |
1.406 GHz, 8 GB (295 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
AMD RX Vega 64
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
2560x1440 (1440p)
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
1920x1080 (1080p)
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
Geekbench 6 - Metal
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
|
|
AMD RX Vega 64
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
PowerColor Radeon RX Vega 64 Liquid
8 GB HBM2 |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
