PowerColor Radeon VII


Last updated:

Benchmark and Specs

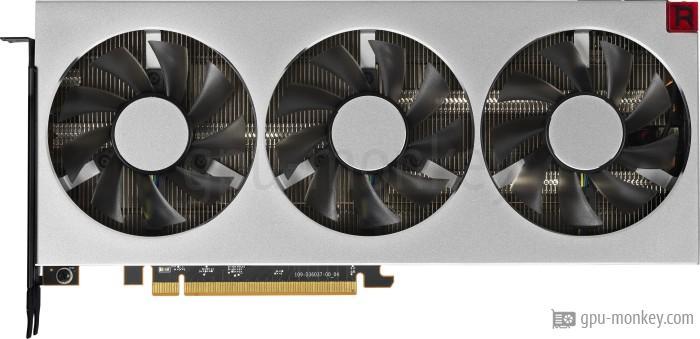

Here we show you benchmarks and technical data for the PowerColor Radeon VII. The graphics card is based on the AMD Radeon VII (GCN 5.1) and has 16 GB HBM2 graphics memory with a memory bandwidth of 1024 GB/s. The PowerColor Radeon VII has 60 execution units with 3840 shaders.

GPU

The PowerColor Radeon VII has 3840 shaders and 60 execution units. The graphics card thus achieves a theoretical FP32 computing power of 13.07 TFLOPS.

Based on: AMD Radeon VII
GPU Chip: Vega 20 XT (GCN 5.1)
Streaming Multiprocessors: 60
Shader: 3840
Render Output Units: 64
Texture Units: 240
Raytracing Cores: 0

Memory

The PowerColor Radeon VII can use 16 GB graphics memory of the type HBM2. The graphics card thus achieves a memory bandwidth of 1024 GB/s on a 4096 bit wide memory interface.

Memory Size: 16 GB
Memory Type: HBM2
Memory Clock: 1.000 GHz
Memory Speed: 2.0 Gbps
Memory bandwidth: 1024 GB/s
Memory Interface: 4096 bit

Clock Speeds

The base clock frequency of the PowerColor Radeon VII is 1.400 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card.

Base Clock: 1.400 GHz
Boost Clock: 1.750 GHz
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The TDP (Thermal Design Power) of the PowerColor Radeon VII is 300 W. The graphics card is supplied with energy via the 2 x 8-Pin connector.

TDP: 300 W
TDP (up): --
Tjunction max: 99 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The PowerColor Radeon VII has a total of 3 Axial fans to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 75 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 32 dB
Noise (Load): 52 dB

Connectivity

Up to 4 screens can be connected to the PowerColor Radeon VII.

Max. Displays: 4
HDCP-Version: 2.2
HDMI Ports: 1x HDMI v2.0b
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The PowerColor Radeon VII has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_1 standard.

Max. resolution: 7680x4320
DirectX: 12_1
Raytracing: No
DLSS / FSR: Yes
LED: Non addressable LED

Supported Video Codecs

The video codecs accelerated in hardware by the PowerColor Radeon VII reduce the processor load and ensure lower energy consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode / Encode
AV1: No

Dimensions

The PowerColor Radeon VII is 280 mm long and 125 mm high. With a width of 40 mm, the graphics card requires 2 PCIe-Slots in the case.

Length: 280 mm
Height: 125 mm
Width: 40 mm
Width (Slots): 2 PCIe-Slots
Weight: --

Additional data

The PowerColor Radeon VII made in 7 nm was published in Q1/2019 for 699 $ (Reference).

GPU Interface: PCIe 3.0 x 16
Release date: Q1/2019
Launch Price: 699 $ (Reference)
Structure size: 7 nm
Part-no: AXVII 16GBHBM2-3DH
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
4353
AMD Radeon VII AMD Radeon VII
Average of gpu group
4384

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
65 fps (avg)
AMD Radeon VII AMD Radeon VII
Average of gpu group
65 fps (avg)

2560x1440 (1440p)

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
116 fps (avg)
AMD Radeon VII AMD Radeon VII
Average of gpu group
114 fps (avg)

1920x1080 (1080p)

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
150 fps (avg)
AMD Radeon VII AMD Radeon VII
Average of gpu group
153 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
88364
AMD Radeon VII AMD Radeon VII
Average of gpu group
88059

Geekbench 6 - Vulkan

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
91547
AMD Radeon VII AMD Radeon VII
Average of gpu group
84891

Geekbench 6 - Metal

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
76267
AMD Radeon VII AMD Radeon VII
Average of gpu group
72709

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

PowerColor Radeon VII PowerColor Radeon VII
16 GB HBM2
13.07

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
