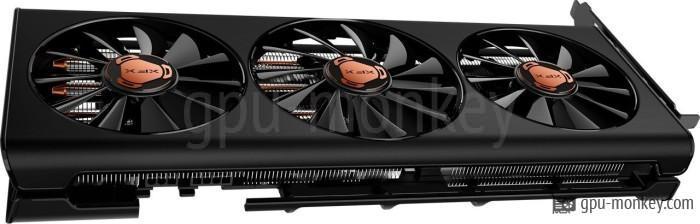

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps is 1.750 GHz, so the graphics card achieves an FP32 computing power of 8.08 TFLOPS.

GPU

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps is equipped with 36 execution and 2304 shader units. With single precision, a theoretical FP32 computing power of 8.08 TFLOPS is achieved.

Based on: AMD Radeon RX 5600 XT
GPU Chip: Navi 10 XLE (RDNA 1)
Streaming Multiprocessors: 36
Shader: 2304
Render Output Units: 64
Texture Units: 144
Raytracing Cores: 0

Memory

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps has a 192 bit wide memory interface, with which a memory bandwidth of 288 GB/s is achieved. In total, 6 GB GDDR6 graphics memory is available for the graphics card.

Memory Size: 6 GB
Memory Type: GDDR6
Memory Clock: 1.500 GHz
Memory Speed: 12.0 Gbps
Memory bandwidth: 288 GB/s
Memory Interface: 192 bit

Clock Speeds

The manufacturer specifies the memory clock of the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps with 1.130 GHz (base clock) or with 1.750 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 1.130 GHz
Boost Clock: 1.750 GHzDeviation vs GPU group+ 12 %
Avg (Game) Clock: 1.660 GHzDeviation vs GPU group+ 21 %
Overclocking: Yes

Thermal Design

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps has 1 x 6-Pin, 1 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 100 °C.

TDP: 160 W
TDP (up): 195 W
Tjunction max: 100 °C
PCIe-Power: 1 x 6-Pin, 1 x 8-Pin

Cooler & Fans

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 1 x 100 mm
Fan 2: 2 x 90 mm
Cooler-Type: Air cooling
Noise (Idle): 34 dB
Noise (Load): 36 dB

Connectivity

Up to 4 screens can be connected to the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.0b
DP Ports: 3x DP v1.4
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: No
DLSS / FSR: Yes
LED: No LED lighting

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode / Encode
AV1: No

Dimensions

The dimensions of the XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps are 326 mm in length, 148 mm in height and 44 mm in width. Thus 3 PCIe-Slots are needed in a case.

Length: 326 mm
Height: 148 mm
Width: 44 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps is manufactured in a structure width of 7 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q1/2020.

GPU Interface: PCIe 4.0 x 16
Release date: Q1/2020
Launch Price: 279 $ (Reference)
Structure size: 7 nm
Part-no: RX-56XT6TBD8
Documents: data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

2560x1440 (1440p)

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps
6 GB GDDR6
31 fps (avg)
AMD Radeon RX 5600 XT AMD Radeon RX 5600 XT
Average of gpu group
28 fps (avg)

1920x1080 (1080p)

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps
6 GB GDDR6
58 fps (avg)
AMD Radeon RX 5600 XT AMD Radeon RX 5600 XT
Average of gpu group
52 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps
6 GB GDDR6
45 fps (avg)
AMD Radeon RX 5600 XT AMD Radeon RX 5600 XT
Average of gpu group
47 fps (avg)

2560x1440 (1440p)

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps
6 GB GDDR6
91 fps (avg)
AMD Radeon RX 5600 XT AMD Radeon RX 5600 XT
Average of gpu group
92 fps (avg)

1920x1080 (1080p)

XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps XFX Radeon RX 5600 XT Thicc III Ultra 12Gbps
6 GB GDDR6
127 fps (avg)
AMD Radeon RX 5600 XT AMD Radeon RX 5600 XT
Average of gpu group
125 fps (avg)

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
