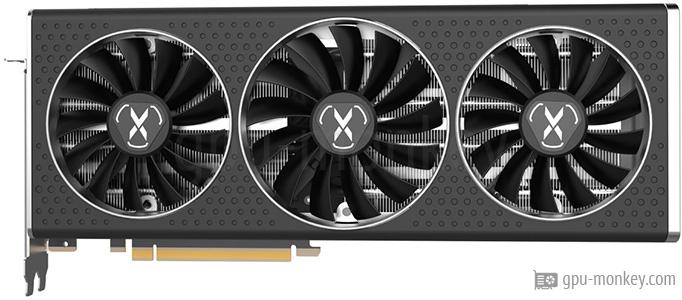

GPUThe XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming has 40 execution units with 2560 shaders. This gives the graphics card a theoretical FP32 computing power of 13.43 TFLOPS. |
|
Based on: | AMD Radeon RX 6750 XT |
GPU Chip: | Navi 22 KXT (RDNA 2) |
Streaming Multiprocessors: | 40 |
Shader: | 2560 |
Render Output Units: | 64 |
Texture Units: | 160 |
Raytracing Cores: | 40 |
MemoryThe XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming is equipped with 12 GB graphics memory of the type GDDR6. The memory clock of the graphics card is 2.250 GHz and the speed is 18 Gbps. |
|
Memory Size: | 12 GB |
Memory Type: | GDDR6 |
Memory Clock: | 2.250 GHz |
Memory Speed: | 18.0 Gbps |
Memory bandwidth: | 432 GB/s |
Memory Interface: | 192 bit |
Clock SpeedsThe base frequency of this graphics card is 2.283 GHz and the manufacturer specifies the maximum turbo clock as 2.623 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
Base Clock: | 2.283 GHz+ 4 % |
Boost Clock: | 2.623 GHz+ 1 % |
Avg (Game) Clock: | 2.533 GHz+ 2 % |
Overclocking: | Yes |
Thermal DesignThe XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 250 W. |
|
TDP: | 250 W |
TDP (up): | -- |
Tjunction max: | 100 °C |
PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming are cooled by a Air cooling. |
|
Fan-Type: | Axial |
Fan 1: | 2 x 90 mm |
Fan 2: | 1 x 100 mm |
Cooler-Type: | Air cooling |
Noise (Idle): | 0 dB / Silent |
Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming. |
|
Max. Displays: | 4 |
HDCP-Version: | 2.3 |
HDMI Ports: | 1x HDMI v2.1 |
DP Ports: | 3x DP v1.4a |
DVI Ports: | -- |
VGA Ports: | -- |
USB-C Ports: | -- |
FeaturesetWith the XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
Max. resolution: | 7680x4320 |
DirectX: | 12_2 (Ultimate) |
Raytracing: | Yes |
DLSS / FSR: | Yes |
LED: | No LED lighting |
Supported Video CodecsThis area lists the video codecs that the XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
h264: | Decode / Encode |
h265 / HEVC: | Decode / Encode |
VP8: | Decode / Encode |
VP9: | Decode / Encode |
AV1: | Decode |
DimensionsThe XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming needs the space of 3 PCIe-Slots in a case. It is 323 mm long, 132 mm high and 51 mm wide. |
|
Length: | 323 mm |
Height: | 132 mm |
Width: | 51 mm |
Width (Slots): | 3 PCIe-Slots |
Weight: | -- |
Additional dataThe XFX Speedster QICK 319 Radeon RX 6750 XT Ultra Gaming was released in Q2/2022 at a price of 549 $ (Reference). The graphics card manufactured in 7 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
GPU Interface: | PCIe 4.0 x 16 |
Release date: | Q2/2022 |
Launch Price: | 549 $ (Reference) |
Structure size: | 7 nm |
Part-no: | RX-675XYLUDP |
Documents: | data sheet |
