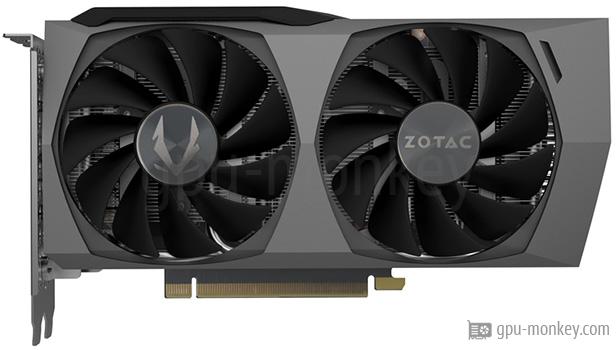

ZOTAC GAMING GeForce RTX 3050 AMP
Benchmark and Specs
Last updated:
Benchmark and Specs
Here we show you benchmarks and technical data for the ZOTAC GAMING GeForce RTX 3050 AMP. The graphics card is based on the NVIDIA GeForce RTX 3050 (Ampere) and has 8 GB GDDR6 graphics memory with a memory bandwidth of 224 GB/s. The ZOTAC GAMING GeForce RTX 3050 AMP has 20 execution units with 2560 shaders.
GPUThe ZOTAC GAMING GeForce RTX 3050 AMP has 2560 shaders and 20 execution units. The graphics card thus achieves a theoretical FP32 computing power of 9.37 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3050 |
| GPU Chip: | GA106-150-A1 (Ampere) |
| Streaming Multiprocessors: | 20 |
| Shader: | 2560 |
| Render Output Units: | 48 |
| Texture Units: | 80 |
| Raytracing Cores: | 20 |
MemoryThe ZOTAC GAMING GeForce RTX 3050 AMP can use 8 GB graphics memory of the type GDDR6. The graphics card thus achieves a memory bandwidth of 224 GB/s on a 128 bit wide memory interface. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR6 |
| Memory Clock: | 1.750 GHz |
| Memory Speed: | 14.0 Gbps |
| Memory bandwidth: | 224 GB/s |
| Memory Interface: | 128 bit |
Clock SpeedsThe base clock frequency of the ZOTAC GAMING GeForce RTX 3050 AMP is 1.552 GHz. A high clock frequency (even in turbo mode) can greatly increase the speed of a graphics card. |
|
| Base Clock: | 1.552 GHz |
| Boost Clock: | 1.830 GHz + 3 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ZOTAC GAMING GeForce RTX 3050 AMP is 130 W. The graphics card is supplied with energy via the 1 x 8-Pin connector. |
|
| TDP: | 130 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 1 x 8-Pin |
Cooler & FansThe ZOTAC GAMING GeForce RTX 3050 AMP has a total of 2 Axial fans to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 2 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the ZOTAC GAMING GeForce RTX 3050 AMP. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ZOTAC GAMING GeForce RTX 3050 AMP has a maximum resolution of 7680x4320 pixels. The graphics card supports the DirectX 12_2 (Ultimate) standard. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsThe video codecs accelerated in hardware by the ZOTAC GAMING GeForce RTX 3050 AMP reduce the processor load and ensure lower energy consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe ZOTAC GAMING GeForce RTX 3050 AMP is 224 mm long and 116 mm high. With a width of 39 mm, the graphics card requires 2 PCIe-Slots in the case. |
|
| Length: | 224 mm |
| Height: | 116 mm |
| Width: | 39 mm |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe ZOTAC GAMING GeForce RTX 3050 AMP made in 8 nm was published in Q1/2022 for 249 $ (Reference). |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2022 |
| Launch Price: | 249 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | ZT-A30500F-10M |
| Documents: | data sheet |
1.552 GHz, 8 GB (130 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
|
|
NVIDIA GeForce RTX 3050
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ZOTAC GAMING GeForce RTX 3050 AMP
8 GB GDDR6 |
||
