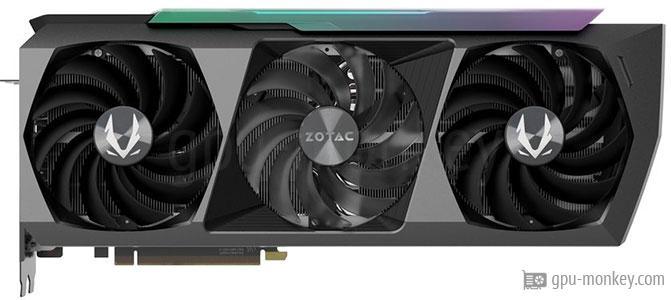

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo


Last updated:

Benchmark and Specs

All technical data and various benchmarks of the ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo are listed on this page. The graphics card is based on the GA104-400-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.

GPU

The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo has 48 execution units with 6144 shaders. This gives the graphics card a theoretical FP32 computing power of 23.22 TFLOPS.

Based on: NVIDIA GeForce RTX 3070 Ti
GPU Chip: GA104-400-A1 (Ampere)
Streaming Multiprocessors: 48
Shader: 6144
Render Output Units: 96
Texture Units: 192
Raytracing Cores: 48

Memory

The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo is equipped with 8 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps.

Memory Size: 8 GB
Memory Type: GDDR6X
Memory Clock: 1.188 GHz
Memory Speed: 19.0 Gbps
Memory bandwidth: 608 GB/s
Memory Interface: 256 bit

Clock Speeds

The base frequency of this graphics card is 1.580 GHz and the manufacturer specifies the maximum turbo clock as 1.890 GHz. If supported (see below), the performance can be further increased by overclocking.

Base Clock: 1.580 GHz
Boost Clock: 1.890 GHzDeviation vs GPU group+ 7 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo is powered by 3 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 310 W.

TDP: 310 WDeviation vs GPU group+ 7 %
TDP (up): --
Tjunction max: 93 °C
PCIe-Power: 3 x 8-Pin

Cooler & Fans

Graphics processor and graphics memory of the ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo are cooled by a Air cooling.

Fan-Type: Axial
Fan 1: 3 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): --

Connectivity

Up to 4 monitors can be operated with the ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

With the ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported.

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: ZOTAC SPECTRA

Supported Video Codecs

This area lists the video codecs that the ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo needs the space of 3 PCIe-Slots in a case. It is 353 mm long, 145 mm high and 60 mm wide.

Length: 353 mm
Height: 145 mm
Width: 60 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo was released in Q3/2021 at a price of 599 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes.

GPU Interface: PCIe 4.0 x 16
Release date: Q3/2021
Launch Price: 599 $ (Reference)
Structure size: 8 nm
Part-no: ZT-A30710B-10P
Documents: data sheet

Rate this graphics card

Here you can rate this graphics card and help other visitors with their purchase decision. The average rating for this graphics card is currently 0 stars (0 ratings). Rate it now:

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
56 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
53 fps (avg)

2560x1440 (1440p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
68 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
65 fps (avg)

1920x1080 (1080p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
101 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
96 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
26 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
24 fps (avg)

2560x1440 (1440p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
62 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
58 fps (avg)

1920x1080 (1080p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
117 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
110 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
91 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
85 fps (avg)

2560x1440 (1440p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
155 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
146 fps (avg)

1920x1080 (1080p)

ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo ZOTAC GAMING GeForce RTX 3070 Ti AMP Extreme Holo
8 GB GDDR6X
208 fps (avg)
NVIDIA GeForce RTX 3070 Ti NVIDIA GeForce RTX 3070 Ti
Average of gpu group
188 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
