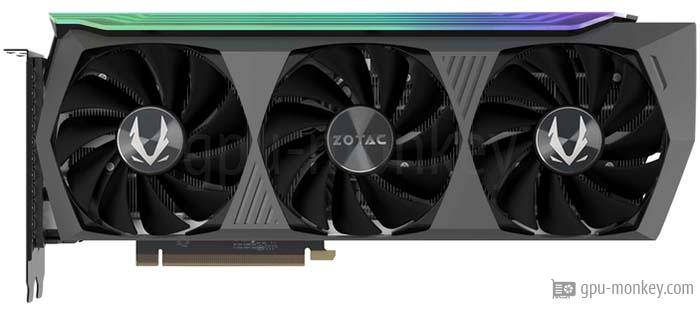

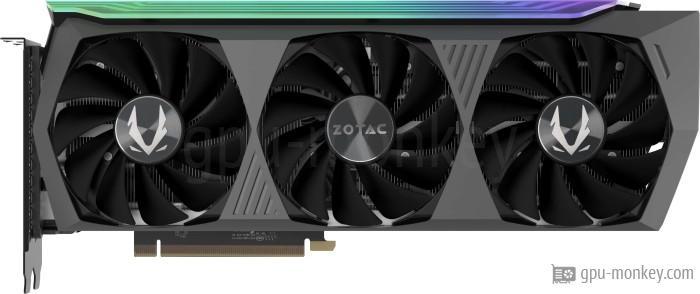

Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB is 1.755 GHz, so the graphics card achieves an FP32 computing power of 31.45 TFLOPS.
GPUThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB is equipped with 70 execution and 8960 shader units. With single precision, a theoretical FP32 computing power of 31.45 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce RTX 3080 12GB |
| GPU Chip: | GA102 (Ampere) |
| Streaming Multiprocessors: | 70 |
| Shader: | 8960 |
| Render Output Units: | 112 |
| Texture Units: | 280 |
| Raytracing Cores: | 70 |
MemoryThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB has a 384 bit wide memory interface, with which a memory bandwidth of 912 GB/s is achieved. In total, 12 GB GDDR6X graphics memory is available for the graphics card. |
|
| Memory Size: | 12 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 912 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB with 1.260 GHz (base clock) or with 1.755 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.260 GHz |
| Boost Clock: | 1.755 GHz + 3 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C. |
|
| TDP: | 350 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate). |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ZOTAC SPECTRA |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe dimensions of the Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB are 318 mm in length, 132 mm in height and 65 mm in width. Thus 3 PCIe-Slots are needed in a case. |
|
| Length: | 318 mm |
| Height: | 132 mm |
| Width: | 65 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q1/2022. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q1/2022 |
| Launch Price: | 699 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | ZT-A30820F-10PLHR |
| Documents: | data sheet |
1.260 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Port Royal (Raytracing)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
2560x1440 (1440p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
1920x1080 (1080p)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 12GB
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
Zotac GAMING GeForce RTX 3080 AMP Holo LHR 12GB
12 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,159 entries
5,159 entries
Cyberpunk 2077
2,942 entries
2,942 entries
The Last of Us Part 1
2,058 entries
2,058 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
FP32 Performance
5,522 entries
5,522 entries
