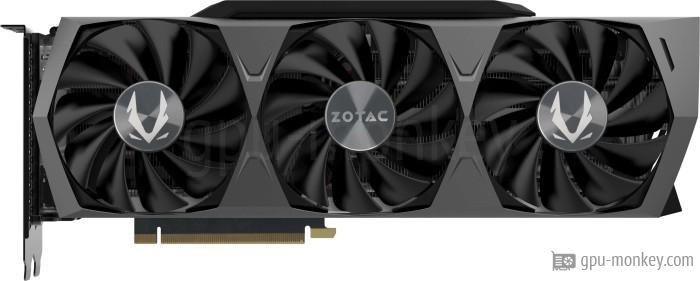

ZOTAC Gaming GeForce RTX 3080 Ti Trinity
Last updated:
Benchmark and Specs
All technical data and various benchmarks of the ZOTAC Gaming GeForce RTX 3080 Ti Trinity are listed on this page. The graphics card is based on the GA102-225-A1 (Ampere) graphics chip, which is manufactured with a structure width of 8 nm. The ZOTAC Gaming GeForce RTX 3080 Ti Trinity can operate up to 4 screens with a maximum resolution of up to 7680x4320 become.
GPUThe ZOTAC Gaming GeForce RTX 3080 Ti Trinity has 80 execution units with 10240 shaders. This gives the graphics card a theoretical FP32 computing power of 34.10 TFLOPS. |
|
| Based on: | NVIDIA GeForce RTX 3080 Ti |
| GPU Chip: | GA102-225-A1 (Ampere) |
| Streaming Multiprocessors: | 80 |
| Shader: | 10240 |
| Render Output Units: | 112 |
| Texture Units: | 320 |
| Raytracing Cores: | 80 |
MemoryThe ZOTAC Gaming GeForce RTX 3080 Ti Trinity is equipped with 12 GB graphics memory of the type GDDR6X. The memory clock of the graphics card is 1.188 GHz and the speed is 19 Gbps. |
|
| Memory Size: | 12 GB |
| Memory Type: | GDDR6X |
| Memory Clock: | 1.188 GHz |
| Memory Speed: | 19.0 Gbps |
| Memory bandwidth: | 912 GB/s |
| Memory Interface: | 384 bit |
Clock SpeedsThe base frequency of this graphics card is 1.365 GHz and the manufacturer specifies the maximum turbo clock as 1.665 GHz. If supported (see below), the performance can be further increased by overclocking. |
|
| Base Clock: | 1.365 GHz |
| Boost Clock: | 1.665 GHz |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe ZOTAC Gaming GeForce RTX 3080 Ti Trinity is powered by 2 x 8-Pin connectors. The TDP (Thermal Design Power) of the graphics card is 350 W. |
|
| TDP: | 350 W |
| TDP (up): | -- |
| Tjunction max: | 93 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansGraphics processor and graphics memory of the ZOTAC Gaming GeForce RTX 3080 Ti Trinity are cooled by a Air cooling. |
|
| Fan-Type: | Axial |
| Fan 1: | 3 x 90 mm |
| Fan 2: | -- |
| Cooler-Type: | Air cooling |
| Noise (Idle): | 0 dB / Silent |
| Noise (Load): | -- |
ConnectivityUp to 4 monitors can be operated with the ZOTAC Gaming GeForce RTX 3080 Ti Trinity. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.3 |
| HDMI Ports: | 1x HDMI v2.1 |
| DP Ports: | 3x DP v1.4a |
| DVI Ports: | -- |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetWith the ZOTAC Gaming GeForce RTX 3080 Ti Trinity it is possible to operate a screen with a resolution of up to 7680x4320 pixels. Furthermore, the DirectX standard version 12_2 (Ultimate) is supported. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_2 (Ultimate) |
| Raytracing: | Yes |
| DLSS / FSR: | Yes |
| LED: | ZOTAC SPECTRA |
Supported Video CodecsThis area lists the video codecs that the ZOTAC Gaming GeForce RTX 3080 Ti Trinity can decode or encode in hardware in order to minimize the processor load, which leads to lower power consumption. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | Decode |
DimensionsThe ZOTAC Gaming GeForce RTX 3080 Ti Trinity needs the space of 3 PCIe-Slots in a case. It is 318 mm long, 121 mm high and 63 mm wide. |
|
| Length: | 318 mm |
| Height: | 121 mm |
| Width: | 63 mm |
| Width (Slots): | 3 PCIe-Slots |
| Weight: | -- |
Additional dataThe ZOTAC Gaming GeForce RTX 3080 Ti Trinity was released in Q2/2021 at a price of 1,199 $ (Reference). The graphics card manufactured in 8 nm is connected to the system via PCIe 4.0 x 16 lanes. |
|
| GPU Interface: | PCIe 4.0 x 16 |
| Release date: | Q2/2021 |
| Launch Price: | 1,199 $ (Reference) |
| Structure size: | 8 nm |
| Part-no: | ZT-A30810D-10P |
| Documents: | data sheet |
1.365 GHz, 12 GB (350 W TDP)
Buy this graphic card at amazon!
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.Time Spy Extreme Graphics score
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
Speed Way Graphics Score (Raytracing)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.3840x2160 (2160p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
|
|
NVIDIA GeForce RTX 3080 Ti
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.FP32 (TFLOPS)
|
|
ZOTAC Gaming GeForce RTX 3080 Ti Trinity
12 GB GDDR6X |
||
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
4,638 entries
4,638 entries
Cyberpunk 2077
2,453 entries
2,453 entries
Shadow of the Tomb Raider
4,559 entries
4,559 entries
Battlefield 5
3,937 entries
3,937 entries
GTA 5 Benchmark
2,499 entries
2,499 entries
Geekbench 5
3,721 entries
3,721 entries
Crypto-Mining Ethereum Hashrate
3,447 entries
3,447 entries
Crypto-Mining Ergo Hashrate
3,673 entries
3,673 entries
Crypto-Mining Ravencoin Hashrate
3,600 entries
3,600 entries
FP32 Performance
5,094 entries
5,094 entries
Recommended power supplies for this graphics card
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
EVGA SuperNOVA 850 P2 - 850 W | 6 x | 185 $ | |
|
|
EVGA SuperNOVA 850 G+ - 850 W | 6 x | 145 $ | |
|
Corsair HX Series HX850 - 850 W | 6 x | 182 $ | |
|
|
Corsair TX-M Series TX850M 2017 - 850 W | 4 x | 121 $ | |
|
be quiet! Straight Power 11 - 850 W | 4 x | 169 $ | |
|
|
Corsair RMx Series RM850x White - 850 W | 4 x | 149 $ | |
|
|
EVGA SuperNOVA 850 G5 - 850 W | 6 x | 170 $ | |
|
Seasonic PRIME TX-850 - 850 W | 6 x | 219 $ | |
|
|
Seasonic PRIME GX-850 - 850 W | 6 x | 169 $ | |
|
|
Seasonic PRIME PX-850 - 850 W | 6 x | 219 $ |
