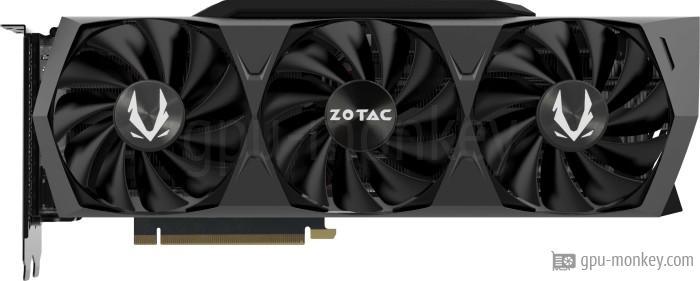

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR


Last updated:

Benchmark and Specs

Here you will find all technical data as well as various benchmarks of the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR is 1.725 GHz, so the graphics card achieves an FP32 computing power of 30.03 TFLOPS.

GPU

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR is equipped with 68 execution and 8704 shader units. With single precision, a theoretical FP32 computing power of 30.03 TFLOPS is achieved.

Based on: NVIDIA GeForce RTX 3080 LHR
GPU Chip: GA102-202-K1-A1 (Ampere)
Streaming Multiprocessors: 68
Shader: 8704
Render Output Units: 96
Texture Units: 272
Raytracing Cores: 68

Memory

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR has a 320 bit wide memory interface, with which a memory bandwidth of 760 GB/s is achieved. In total, 10 GB GDDR6X graphics memory is available for the graphics card.

Memory Size: 10 GB
Memory Type: GDDR6X
Memory Clock: 1.188 GHz
Memory Speed: 19.0 Gbps
Memory bandwidth: 760 GB/s
Memory Interface: 320 bit

Clock Speeds

The manufacturer specifies the memory clock of the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR with 1.440 GHz (base clock) or with 1.725 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further.

Base Clock: 1.440 GHz
Boost Clock: 1.725 GHzDeviation vs GPU group+ 1 %
Avg (Game) Clock:
Overclocking: Yes

Thermal Design

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 93 °C.

TDP: 320 W
TDP (up): 370 W
Tjunction max: 93 °C
PCIe-Power: 2 x 8-Pin

Cooler & Fans

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR is equipped with 3 Axial main fans, which are used to cool the graphics processor and graphics memory.

Fan-Type: Axial
Fan 1: 3 x 100 mm
Fan 2: --
Cooler-Type: Air cooling
Noise (Idle): 0 dB / Silent
Noise (Load): 41-42 dB

Connectivity

Up to 4 screens can be connected to the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR, whereby the backward-compatible HDCP copy protection is supported in the 2.3 version.

Max. Displays: 4
HDCP-Version: 2.3
HDMI Ports: 1x HDMI v2.1
DP Ports: 3x DP v1.4a
DVI Ports: --
VGA Ports: --
USB-C Ports: --

Featureset

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_2 (Ultimate).

Max. resolution: 7680x4320
DirectX: 12_2 (Ultimate)
Raytracing: Yes
DLSS / FSR: Yes
LED: ZOTAC SPECTRA

Supported Video Codecs

Here is a list of which video codecs can be decoded / encoded by the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR in hardware in order to minimize the processor load.

h264: Decode / Encode
h265 / HEVC: Decode / Encode
VP8: Decode
VP9: Decode
AV1: Decode

Dimensions

The dimensions of the ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR are 318 mm in length, 121 mm in height and 58 mm in width. Thus 3 PCIe-Slots are needed in a case.

Length: 318 mm
Height: 121 mm
Width: 58 mm
Width (Slots): 3 PCIe-Slots
Weight: --

Additional data

The ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR is manufactured in a structure width of 8 nm and has a PCIe 4.0 x 16 lanes interface. The graphics card was released in Q2/2021.

GPU Interface: PCIe 4.0 x 16
Release date: Q2/2021
Launch Price: 839 $
Structure size: 8 nm
Part-no: ZT-A30800J-10PLHR
Documents: data sheet

Benchmark results

3DMark Benchmark (DirectX, Raytracing)

3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.

Time Spy Extreme Graphics score

Port Royal (Raytracing)

Speed Way Graphics Score (Raytracing)

Cyberpunk 2077

Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.

3840x2160 (2160p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
60 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
61 fps (avg)

2560x1440 (1440p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
71 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
72 fps (avg)

1920x1080 (1080p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
105 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
106 fps (avg)

The Last of Us Part 1

The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.

3840x2160 (2160p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
36 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
36 fps (avg)

2560x1440 (1440p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
73 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
72 fps (avg)

1920x1080 (1080p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
121 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
120 fps (avg)

Battlefield 5

Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.

3840x2160 (2160p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
103 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
107 fps (avg)

2560x1440 (1440p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
177 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
162 fps (avg)

1920x1080 (1080p)

ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR ZOTAC Gaming GeForce RTX 3080 Trinity OC LHR
10 GB GDDR6X
201 fps (avg)
NVIDIA GeForce RTX 3080 LHR NVIDIA GeForce RTX 3080 LHR
Average of gpu group
184 fps (avg)

Geekbench 6 (OpenCL, Vulkan, Metal)

Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.

Geekbench 6 - OpenCL

Geekbench 6 - Vulkan

FP32 Performance (Single-precision TFLOPS)

The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.

FP32 (TFLOPS)

More benchmarks

In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.

We use the following benchmarks to measure the performance of a graphics card:
