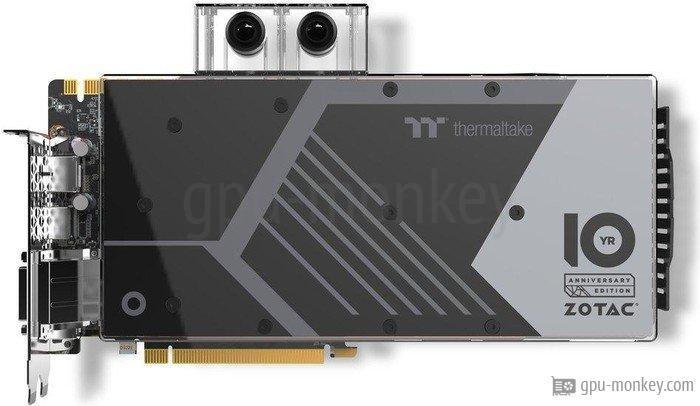

ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
Benchmark and Specs
Last updated:
Benchmark and Specs
Here you will find all technical data as well as various benchmarks of the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition. Up to 4 screens with a maximum resolution of up to 7680x4320 can be operated with this graphics card. The maximum turbo clock of the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition is 1.797 GHz, so the graphics card achieves an FP32 computing power of 9.20 TFLOPS.
GPUThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition is equipped with 20 execution and 2560 shader units. With single precision, a theoretical FP32 computing power of 9.20 TFLOPS is achieved. |
|
| Based on: | NVIDIA GeForce GTX 1080 |
| GPU Chip: | GP104-400-A1 / GP104-410-A1 (Pascal) |
| Streaming Multiprocessors: | 20 |
| Shader: | 2560 |
| Render Output Units: | 64 |
| Texture Units: | 160 |
| Raytracing Cores: | 0 |
MemoryThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition has a 256 bit wide memory interface, with which a memory bandwidth of 320 GB/s is achieved. In total, 8 GB GDDR5X graphics memory is available for the graphics card. |
|
| Memory Size: | 8 GB |
| Memory Type: | GDDR5X |
| Memory Clock: | 1.251 GHz |
| Memory Speed: | 10.0 Gbps |
| Memory bandwidth: | 320 GB/s |
| Memory Interface: | 256 bit |
Clock SpeedsThe manufacturer specifies the memory clock of the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition with 1.657 GHz (base clock) or with 1.797 GHz (turbo clock). If overclocking is supported (see below), the clock rate can be increased even further. |
|
| Base Clock: | 1.657 GHz + 3 % |
| Boost Clock: | 1.797 GHz+ 4 % |
| Avg (Game) Clock: | |
| Overclocking: | Yes |
Thermal DesignThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition has 2 x 8-Pin plugs, which supply the graphics card with energy. The maximum operating temperature of the card is 94 °C. |
|
| TDP: | 180 W |
| TDP (up): | -- |
| Tjunction max: | 94 °C |
| PCIe-Power: | 2 x 8-Pin |
Cooler & FansThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition is equipped with 0 -- main fans, which are used to cool the graphics processor and graphics memory. |
|
| Fan-Type: | -- |
| Fan 1: | -- |
| Fan 2: | -- |
| Cooler-Type: | Water cooling |
| Noise (Idle): | -- |
| Noise (Load): | -- |
ConnectivityUp to 4 screens can be connected to the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition, whereby the backward-compatible HDCP copy protection is supported in the 2.2 version. |
|
| Max. Displays: | 4 |
| HDCP-Version: | 2.2 |
| HDMI Ports: | 1x HDMI v2.0b |
| DP Ports: | 3x DP v1.4 |
| DVI Ports: | 1 |
| VGA Ports: | -- |
| USB-C Ports: | -- |
FeaturesetThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition supports a maximum resolution of 7680x4320 pixels and the DirectX standard version 12_1. |
|
| Max. resolution: | 7680x4320 |
| DirectX: | 12_1 |
| Raytracing: | No |
| DLSS / FSR: | Yes |
| LED: | No LED lighting |
Supported Video CodecsHere is a list of which video codecs can be decoded / encoded by the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition in hardware in order to minimize the processor load. |
|
| h264: | Decode / Encode |
| h265 / HEVC: | Decode / Encode |
| VP8: | Decode |
| VP9: | Decode |
| AV1: | No |
DimensionsThe dimensions of the ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition are 300 mm in length, 171 mm in height and -- in width. Thus 2 PCIe-Slots are needed in a case. |
|
| Length: | 300 mm |
| Height: | 171 mm |
| Width: | -- |
| Width (Slots): | 2 PCIe-Slots |
| Weight: | -- |
Additional dataThe ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition is manufactured in a structure width of 16 nm and has a PCIe 3.0 x 16 lanes interface. The graphics card was released in Q4/2016. |
|
| GPU Interface: | PCIe 3.0 x 16 |
| Release date: | Q4/2016 |
| Launch Price: | 599 $ (Reference) |
| Structure size: | 16 nm |
| Part-no: | ZT-P10800G-30P |
| Documents: | data sheet |
1.657 GHz, 8 GB (180 W TDP)
Buy this graphic card at amazon!
Rate this graphics card
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Port Royal (Raytracing)
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
2560x1440 (1440p)
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
1920x1080 (1080p)
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
Geekbench 6 - Vulkan
|
|
ZOTAC GeForce GTX 1080 ArcticStorm Thermaltake 10 Year Anniversary Edition
8 GB GDDR5X |
||
|
|
NVIDIA GeForce GTX 1080
Average of gpu group |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
More benchmarks
In order to determine the performance of a graphics card, so-called "benchmarks" are carried out. The benchmark software carries out special calculations to determine the performance of a graphics card. We use so-called theoretical or synthetic benchmarks (e.g. 3D Mark) as well as real game benchmarks. To ensure real comparability of the results, we pay attention to the correct execution of the benchmarks as well as the condition of the graphics card and the system.We use the following benchmarks to measure the performance of a graphics card:
3DMark Benchmark
5,148 entries
5,148 entries
GTA 5 Benchmark
4,624 entries
4,624 entries
Shadow of the Tomb Raider
5,148 entries
5,148 entries
Battlefield 5
4,510 entries
4,510 entries
Geekbench 6
5,151 entries
5,151 entries
Crypto-Mining Ethereum Hashrate
3,506 entries
3,506 entries
Crypto-Mining Ergo Hashrate
3,737 entries
3,737 entries
Crypto-Mining Ravencoin Hashrate
3,664 entries
3,664 entries
Crypto-Mining Vertcoin Hashrate
2,459 entries
2,459 entries
FP32 Performance
5,522 entries
5,522 entries
