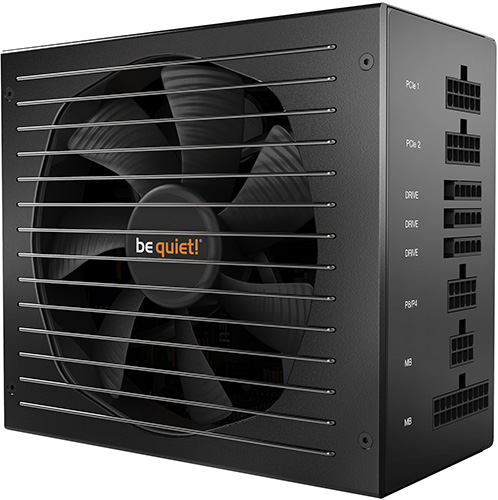

be quiet! Straight Power 11 - 550 W
Power |
|
| Output Power: | 550 W |
| 80 Plus Certification: | 80 PLUS Gold |
| Efficiency @ 115V/50%: | ≥ 91 % |
| Efficiency @ 230V/50%: | ≥ 93 % |
| Input Voltage: | 100-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | Yes |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 1 x |
| PCIe 8 Pin (6+2): | 2 x |
| SATA: | 9 x |
| PATA (4-Pin IDE): | 3 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 160 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | be quiet! |
| Series: | Straight Power 11 Gold |
| Part-no: | BN281 |
| Launch Price: | 115 $ |
Additional data |
|
| Fan: | 135 mm |
| RGB Fan: | No |
| Warranty: | 5 Years |
| Release date: | Q1/2018 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
AMD Custom Radeon Graphics (XBox Series X) | 200 W | |
|
NVIDIA GeForce RTX 3060 Ti | 200 W | |
|
|
NVIDIA GeForce RTX 3060 Ti LHR | 200 W | |
|
|
NVIDIA GeForce RTX 4070 | 200 W | |
|
|
NVIDIA RTX A4500 | 200 W | |
|
|
AMD Radeon RX 7600 XT | 190 W | |
|
Intel Arc B580 Graphics | 190 W | |
|
|
AMD Radeon RX 580 (36 CU) | 185 W | |
|
|
NVIDIA GeForce RTX 2060 12GB | 185 W | |
|
|
AMD Radeon RX 5700 | 180 W | |
|
|
AMD Radeon RX 6650 XT | 180 W | |
|
|
AMD Radeon RX 7900M | 180 W | |
|
|
NVIDIA GeForce GTX 1070 Ti | 180 W | |
|
|
NVIDIA GeForce GTX 1080 | 180 W | |
|
|
AMD Radeon R9 Nano | 175 W | |
|
|
AMD Radeon RX 6700 | 175 W | |
|
|
Intel Arc A580 Graphics | 175 W | |
|
|
NVIDIA GeForce RTX 2060 SUPER | 175 W | |
|
|
NVIDIA GeForce RTX 2060 SUPER Mobile (Laptop GPU) | 175 W | |
|
|
NVIDIA GeForce RTX 2070 | 175 W | |
|
|
NVIDIA GeForce RTX 3060 | 170 W | |
|
|
NVIDIA GeForce RTX 3060 8GB | 170 W | |
|
|
NVIDIA GeForce RTX 3060 LHR | 170 W | |
|
|
NVIDIA GeForce RTX 5060 | 170 W | |
|
|
NVIDIA GeForce RTX 5060 TI | 170 W |
Power Supply Series: be quiet! Straight Power 11 Gold
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
be quiet! Straight Power 11 - 450 W | 2 x | 105 $ | |
|
|
be quiet! Straight Power 11 - 550 W | 2 x | 115 $ | |
|
|
be quiet! Straight Power 11 - 650 W | 4 x | 125 $ | |
|
|
be quiet! Straight Power 11 - 750 W | 4 x | 139 $ | |
|
|
be quiet! Straight Power 11 - 850 W | 4 x | 169 $ | |
|
|
be quiet! Straight Power 11 - 1000 W | 6 x | 209 $ |
