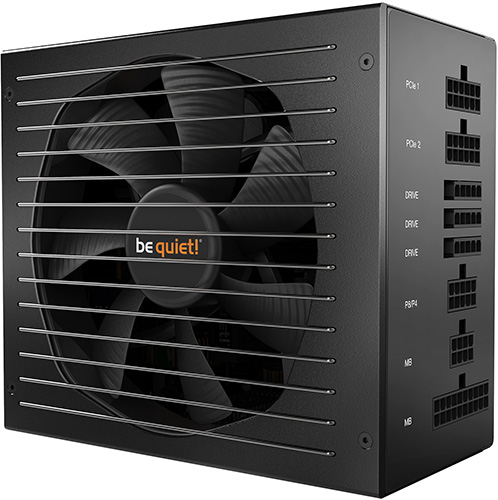

be quiet! Straight Power 11 Platinum - 650 W
Power |
|
| Output Power: | 650 W |
| 80 Plus Certification: | 80 PLUS Platinum |
| Efficiency @ 115V/50%: | ≥ 92 % |
| Efficiency @ 230V/50%: | ≥ 94 % |
| Input Voltage: | 100-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | Yes |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 3 x |
| PCIe 8 Pin (6+2): | 4 x |
| SATA: | 9 x |
| PATA (4-Pin IDE): | 3 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 160 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | be quiet! |
| Series: | Straight Power 11 Platinum |
| Part-no: | BN306 |
| Launch Price: | 139 $ |
Additional data |
|
| Fan: | 135 mm |
| RGB Fan: | No |
| Warranty: | 5 Years |
| Release date: | Q1/2020 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
AMD Radeon R9 FURY | 275 W | |
|
|
AMD Radeon R9 FURY X | 275 W | |
|
NVIDIA GeForce RTX 5070 SUPER | 275 W | |
|
|
AMD Radeon RX 7800 XT | 263 W | |
|
|
AMD Radeon Pro W7800 | 260 W | |
|
|
AMD Radeon RX 7900 GRE | 260 W | |
|
|
AMD Radeon RX 6750 XT | 250 W | |
|
|
AMD Radeon RX 6800 | 250 W | |
|
|
NVIDIA GeForce GTX 1080 Ti | 250 W | |
|
|
NVIDIA GeForce GTX 980 Ti | 250 W | |
|
|
NVIDIA GeForce GTX TITAN | 250 W | |
|
|
NVIDIA GeForce GTX TITAN BLACK | 250 W | |
|
|
NVIDIA GeForce GTX TITAN X | 250 W | |
|
|
NVIDIA GeForce RTX 2080 SUPER | 250 W | |
|
|
NVIDIA GeForce RTX 2080 Ti | 250 W | |
|
|
NVIDIA GeForce RTX 5070 | 250 W | |
|
|
NVIDIA RTX 5000 Ada | 250 W | |
|
|
NVIDIA TITAN V | 250 W | |
|
|
NVIDIA TITAN X Pascal | 250 W | |
|
|
NVIDIA TITAN Xp | 250 W | |
|
|
AMD Radeon RX 7700 XT | 245 W | |
|
|
AMD Radeon RX 6700 XT | 230 W | |
|
|
NVIDIA RTX A5000 | 230 W | |
|
|
NVIDIA RTX A5500 | 230 W | |
|
|
AMD Radeon RX 5700 XT | 225 W |
Power Supply Series: be quiet! Straight Power 11 Platinum
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
be quiet! Straight Power 11 Platinum - 550 W | 2 x | 125 $ | |
|
|
be quiet! Straight Power 11 Platinum - 650 W | 4 x | 139 $ | |
|
|
be quiet! Straight Power 11 Platinum - 750 W | 4 x | 155 $ | |
|
|
be quiet! Straight Power 11 Platinum - 850 W | 4 x | 179 $ | |
|
|
be quiet! Straight Power 11 Platinum - 1000 W | 6 x | 215 $ | |
|
|
be quiet! Straight Power 11 Platinum - 1200 W | 6 x | 239 $ |
