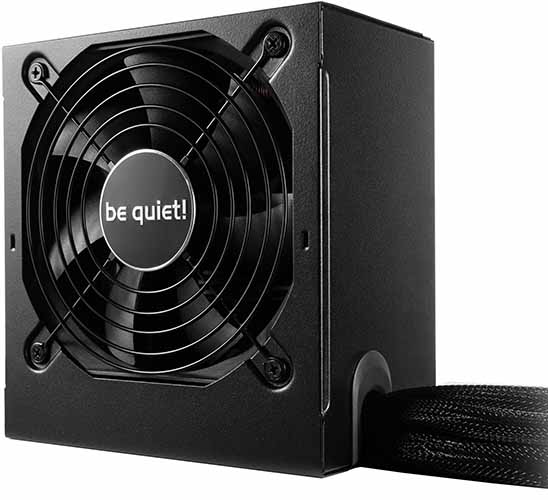

be quiet! System Power 9 - 600 W
Power |
|
| Output Power: | 600 W |
| 80 Plus Certification: | 80 PLUS Bronze |
| Efficiency @ 115V/50%: | ≥ 0 % |
| Efficiency @ 230V/50%: | ≥ 89 % |
| Input Voltage: | 200-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | No |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 1 x |
| PCIe 8 Pin (6+2): | 4 x |
| SATA: | 6 x |
| PATA (4-Pin IDE): | 2 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 140 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | be quiet! |
| Series: | System Power 9 |
| Part-no: | BN247 |
| Launch Price: | 72 $ |
Additional data |
|
| Fan: | 120 mm |
| RGB Fan: | No |
| Warranty: | 3 Years |
| Release date: | Q1/2018 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
AMD Radeon RX 6700 XT | 230 W | |
|
NVIDIA RTX A5000 | 230 W | |
|
|
NVIDIA RTX A5500 | 230 W | |
|
|
AMD Radeon RX 5700 XT | 225 W | |
|
|
AMD Radeon RX 590 | 225 W | |
|
Intel Arc A750 Graphics | 225 W | |
|
|
Intel Arc A770 Graphics 16GB | 225 W | |
|
|
Intel Arc A770 Graphics 8GB | 225 W | |
|
|
NVIDIA GeForce RTX 3060 Ti GDDR6X | 225 W | |
|
|
NVIDIA GeForce RTX 3070 | 220 W | |
|
|
NVIDIA GeForce RTX 3070 LHR | 220 W | |
|
|
NVIDIA GeForce RTX 4070 SUPER | 220 W | |
|
|
NVIDIA GeForce RTX 2070 SUPER | 215 W | |
|
|
NVIDIA GeForce RTX 2080 | 215 W | |
|
|
AMD RX Vega 56 | 210 W | |
|
|
AMD Custom Radeon Graphics (XBox Series X) | 200 W | |
|
|
AMD Radeon RX 7700 XT | 200 W | |
|
|
NVIDIA GeForce RTX 3060 Ti | 200 W | |
|
|
NVIDIA GeForce RTX 3060 Ti LHR | 200 W | |
|
|
NVIDIA GeForce RTX 4070 | 200 W | |
|
|
NVIDIA RTX A4500 | 200 W | |
|
|
AMD Radeon RX 7600 XT | 190 W | |
|
|
AMD Radeon RX 580 (36 CU) | 185 W | |
|
|
NVIDIA GeForce RTX 2060 12GB | 185 W | |
|
|
AMD Radeon RX 5700 | 180 W |
Power Supply Series: be quiet! System Power 9
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
be quiet! System Power 9 - 400 W | 2 x | 50 $ | |
|
|
be quiet! System Power 9 - 500 W | 2 x | 62 $ | |
|
|
be quiet! System Power 9 - 600 W | 4 x | 72 $ | |
|
|
be quiet! System Power 9 - 700 W | 4 x | 85 $ |
