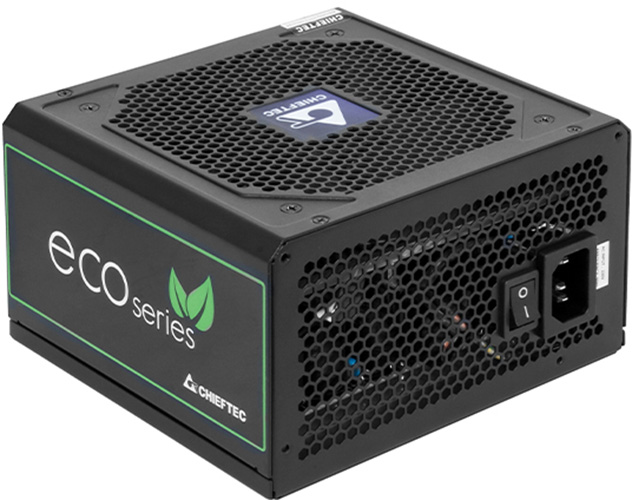

Chieftec Eco Series GPE-700S 230V
Chieftec 80 PLUS

Chieftec Eco Series GPE-700S 230V 700 W

Power
700W
PCIe 8-Pin
2
Form Factor
ATX
Warranty
2Years
Buy this power supply at Amazon

Technical details

Power

Output Power
700 W
80 Plus Certification
80 PLUS
Efficiency @ 230V/50%
85 %
Input Voltage
200-240

Connectors

Cable Management
No
ATX 12V
1
PCIe 8-Pin (6+2)
2
SATA
6
Molex / IDE
2

Dimensions

Form Factor
ATX
Length
140 mm
Height
86 mm
Width
150 mm

Additional data

Manufacturer
Chieftec
Series
Eco
Fan
120 mm
RGB Fan
No
Warranty
2 Years
Release date
Q1/2016
Launch Price
75 $
Part-no
GPE-700S
Documents
data sheet
