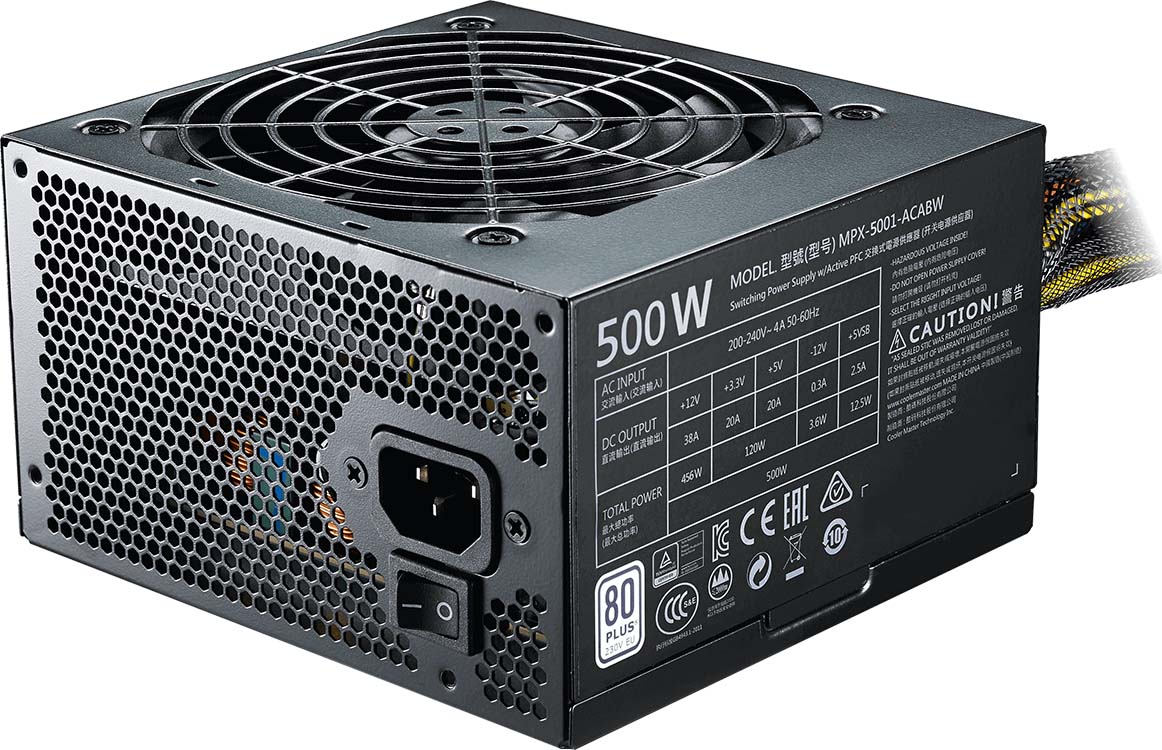

Cooler Master MasterWatt LITE 500W - 230V

Cooler Master 80 PLUS

Cooler Master MasterWatt LITE 500W - 230V 500 W

Power: 500W
PCIe 8-Pin: 2
Form Factor: ATX
Warranty: 3Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 500 W
80 Plus Certification: 80 PLUS
Efficiency @ 230V/50%: 85 %
Input Voltage: 200-240

Connectors

Cable Management: No
ATX 12V: 1
PCIe 8-Pin (6+2): 2
SATA: 6
Molex / IDE: 3

Dimensions

Form Factor: ATX
Length: 140 mm
Height: 86 mm
Width: 150 mm

Additional data

Manufacturer: Cooler Master
Series: MasterWatt
Fan: 120 mm
RGB Fan: No
Warranty: 3 Years
Release date: Q1/2017
Launch Price: 60 $
Part-no: MPX-5001-ACABW
Documents: data sheet

Power Supply recommended for this Graphics Cards

1NVIDIA GeForce RTX 306012 GB GDDR6170W TDP
2NVIDIA GeForce RTX 3060 8GB8 GB GDDR6170W TDP
3NVIDIA GeForce RTX 3060 LHR12 GB GDDR6170W TDP
4AMD Radeon RX 76008 GB GDDR6165W TDP
5NVIDIA GeForce GTX 9804 GB GDDR5165W TDP
6AMD Radeon RX 5600 XT6 GB GDDR6160W TDP
7AMD Radeon RX 6600 XT8 GB GDDR6160W TDP
8AMD Radeon RX 9060 XT 16GB8 GB GDDR6160W TDP
9NVIDIA GeForce RTX 20606 GB GDDR6160W TDP
10NVIDIA GeForce RTX 4060 TI (16GB)16 GB GDDR6160W TDP
11NVIDIA GeForce RTX 4060 TI (8GB)8 GB GDDR6160W TDP
12AMD Radeon AI PRO R9600D32 GB GDDR6150W TDP

Power Supply Series: Cooler Master MasterWatt

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
Cooler Master MasterWatt LITE 400W - 230V	400W	80 PLUS	1x	50$
Cooler Master MasterWatt 450	450W	80 PLUS Bronze	2x	60$
Cooler Master MasterWatt 550	550W	80 PLUS Bronze	2x	70$
Cooler Master MasterWatt LITE 600W - 230V	600W	80 PLUS	2x	70$
Cooler Master MasterWatt 650	650W	80 PLUS Bronze	4x	80$
Cooler Master MasterWatt LITE 700W - 230V	700W	80 PLUS	4x	80$
Cooler Master MasterWatt 750	750W	80 PLUS Bronze	4x	90$
