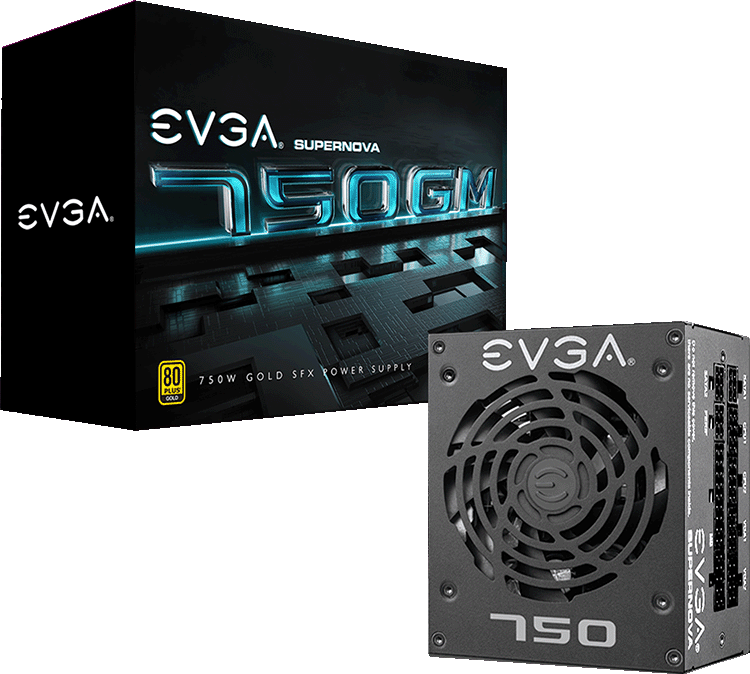

EVGA SuperNOVA 750 GM

EVGA 80 PLUS Gold

EVGA SuperNOVA 750 GM 750 W

Power: 750W
PCIe 8-Pin: 4
Form Factor: SFX
Warranty: 10Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 750 W
80 Plus Certification: 80 PLUS Gold
Efficiency @ 115V/50%: 90 %
Efficiency @ 230V/50%: 92 %
Input Voltage: 100-240

Connectors

Cable Management: Yes
ATX 12V: 2
PCIe 8-Pin (6+2): 4
SATA: 6
Molex / IDE: 4

Dimensions

Form Factor: SFX
Length: 100 mm
Height: 63 mm
Width: 125 mm

Additional data

Manufacturer: EVGA
Series: GM
Fan: 92 mm
RGB Fan: No
Warranty: 10 Years
Release date: Q2/2021
Launch Price: 125 $
Part-no: 123-GM-0750-X1
Documents: data sheet

Power Supply recommended for this Graphics Cards

1AMD Radeon RX 6950 XT16 GB GDDR6335W TDP
2NVIDIA GeForce RTX 308010 GB GDDR6X320W TDP
3NVIDIA GeForce RTX 3080 LHR10 GB GDDR6X320W TDP
4NVIDIA GeForce RTX 408016 GB GDDR6X320W TDP
5NVIDIA GeForce RTX 4080 SUPER16 GB GDDR6X320W TDP
6AMD Radeon RX 9070 XT16 GB GDDR6304W TDP
7AMD Radeon AI PRO R970032 GB GDDR6300W TDP
8AMD Radeon AI PRO R9700S32 GB GDDR6300W TDP
9AMD Radeon RX 6800 XT16 GB GDDR6300W TDP
10AMD Radeon RX 6900 XT16 GB GDDR6300W TDP
11AMD Radeon RX 7900 XT20 GB GDDR6300W TDP
12AMD Radeon VII16 GB HBM2300W TDP

Power Supply Series: EVGA GM

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
EVGA SuperNOVA 450 GM	450W	80 PLUS Gold	2x	90$
EVGA SuperNOVA 550 GM	550W	80 PLUS Gold	4x	110$
EVGA SuperNOVA 650 GM	650W	80 PLUS Gold	4x	130$
EVGA SuperNOVA 850 GM	850W	80 PLUS Gold	4x	150$
