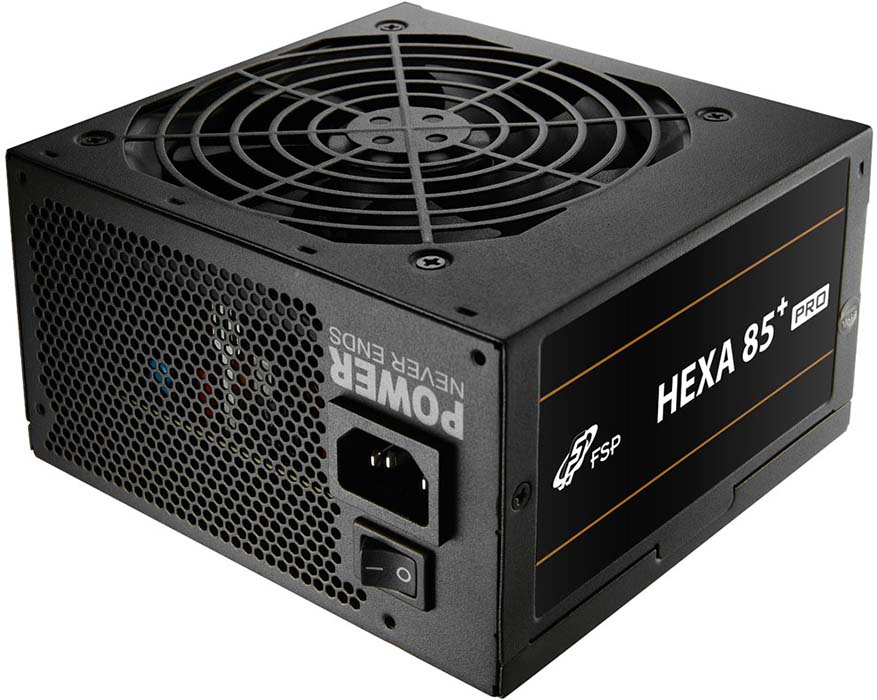

FSP Hexa 85+ Pro 550W

FSP 80 PLUS Bronze

FSP Hexa 85+ Pro 550W 550 W

Power: 550W
PCIe 8-Pin: 2
Form Factor: ATX
Warranty: 2Years

Buy this power supply at Amazon

Technical details

Power

Output Power: 550 W
80 Plus Certification: 80 PLUS Bronze
Efficiency @ 115V/50%: 85 %
Efficiency @ 230V/50%: 88 %
Input Voltage: 100-240

Connectors

Cable Management: No
ATX 12V: 2
PCIe 8-Pin (6+2): 2
SATA: 8
Molex / IDE: 2

Dimensions

Form Factor: ATX
Length: 140 mm
Height: 86 mm
Width: 150 mm

Additional data

Manufacturer: FSP
Series: Hexa 85+ Pro
Fan: 120 mm
RGB Fan: No
Warranty: 2 Years
Release date: Q4/2021
Launch Price: 55 $
Part-no: HA2-550
Documents: data sheet

Power Supply recommended for this Graphics Cards

1AMD Custom Radeon Graphics (XBox Series X)10 GB GDDR6200W TDP
2Intel Arc Pro B60 Graphics24 GB GDDR6200W TDP
3NVIDIA GeForce RTX 3060 Ti8 GB GDDR6200W TDP
4NVIDIA GeForce RTX 3060 Ti LHR8 GB GDDR6200W TDP
5NVIDIA GeForce RTX 407012 GB GDDR6X200W TDP
6NVIDIA RTX A450020 GB GDDR6200W TDP
7AMD Radeon RX 7600 XT16 GB GDDR6190W TDP
8Intel Arc B580 Graphics12 GB GDDR6190W TDP
9AMD Radeon RX 580 (36 CU)8 GB GDDR5185W TDP
10NVIDIA GeForce RTX 2060 12GB12 GB GDDR6185W TDP
11AMD Radeon RX 57008 GB GDDR6180W TDP
12AMD Radeon RX 6650 XT8 GB GDDR6180W TDP

Power Supply Series: FSP Hexa 85+ Pro

Power Supply	Power	80 Plus	PCIe 8-Pin	Launch Price
FSP Hexa 85+ Pro 350W	350W	80 PLUS Bronze	1x	40$
FSP Hexa 85+ Pro 450W	450W	80 PLUS Bronze	2x	45$
FSP Hexa 85+ Pro 650W	650W	80 PLUS Bronze	2x	60$
