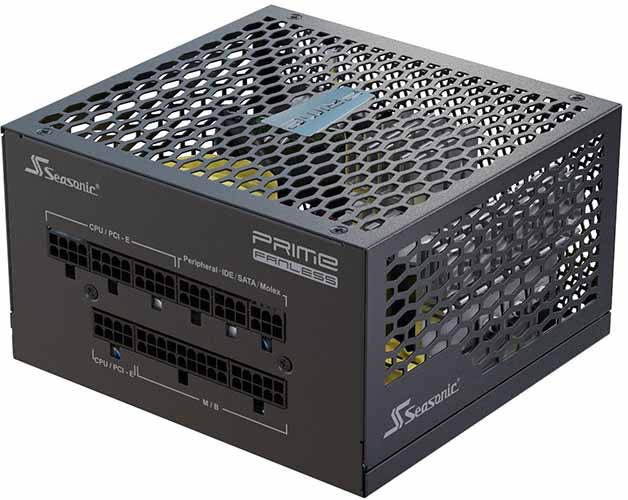

Seasonic PRIME FANLESS PX-500 - 500 W
Power |
|
| Output Power: | 500 W |
| 80 Plus Certification: | 80 PLUS Platinum |
| Efficiency @ 115V/50%: | ≥ 92 % |
| Efficiency @ 230V/50%: | ≥ 94 % |
| Input Voltage: | 100-240 Vac |
| Input Frequency: | 50/60 Hz |
Connectors |
|
| Cable Management: | Yes |
| ATX 24-Pin: | 1 x |
| EPS CPU (P4/P8): | 2 x |
| PCIe 8 Pin (6+2): | 2 x |
| SATA: | 8 x |
| PATA (4-Pin IDE): | 3 x |
Dimensions |
|
| Form Factor: | ATX |
| Length: | 140 mm |
| Height: | 86 mm |
| Width: | 150 mm |
Device |
|
| Manufacturer: | Seasonic |
| Series: | PRIME FANLESS PX |
| Part-no: | -- |
| Launch Price: | 159 $ |
Additional data |
|
| Fan: | 135 mm |
| RGB Fan: | No |
| Warranty: | 12 Years |
| Release date: | Q1/2020 |
| Documents: | data sheet |
Power Supply recommended for this Graphics Cards
| GPU | TDP | ||
|
NVIDIA GeForce RTX 3060 | 170 W | |
|
|
NVIDIA GeForce RTX 3060 8GB | 170 W | |
|
|
NVIDIA GeForce RTX 3060 LHR | 170 W | |
|
AMD Radeon RX 7600 | 165 W | |
|
|
NVIDIA GeForce GTX 980 | 165 W | |
|
|
AMD Radeon RX 5600 XT | 160 W | |
|
|
AMD Radeon RX 6600 XT | 160 W | |
|
|
NVIDIA GeForce RTX 2060 | 160 W | |
|
|
NVIDIA GeForce RTX 4060 TI (16GB) | 160 W | |
|
|
NVIDIA GeForce RTX 4060 TI (8GB) | 160 W | |
|
|
AMD Radeon RX 480 | 150 W | |
|
|
AMD Radeon RX 570 | 150 W | |
|
|
AMD Radeon RX 580 (32 CU) | 150 W | |
|
|
NVIDIA GeForce GTX 1070 | 150 W | |
|
|
NVIDIA GeForce GTX 1080 Mobile (Laptop GPU) | 150 W | |
|
|
NVIDIA GeForce RTX 4050 | 150 W | |
|
|
NVIDIA GeForce GTX 970 | 148 W | |
|
|
NVIDIA RTX A4000 | 140 W | |
|
|
AMD Radeon RX 6600 | 132 W | |
|
|
AMD Radeon RX 5500 XT | 130 W | |
|
Intel Arc Pro A60 Graphics | 130 W | |
|
|
NVIDIA GeForce RTX 3050 | 130 W | |
|
|
NVIDIA GeForce RTX 3050 OEM | 130 W | |
|
|
NVIDIA GeForce GTX 1660 SUPER | 125 W | |
|
|
AMD Radeon RX 470 | 120 W |
Power Supply Series: Seasonic PRIME FANLESS PX
| Power Supply | PCIe 8 Pin (6+2) | Launch Price | ||
|
Seasonic PRIME FANLESS PX-450 - 450 W | 2 x | 145 $ | |
|
|
Seasonic PRIME FANLESS PX-500 - 500 W | 2 x | 159 $ |
