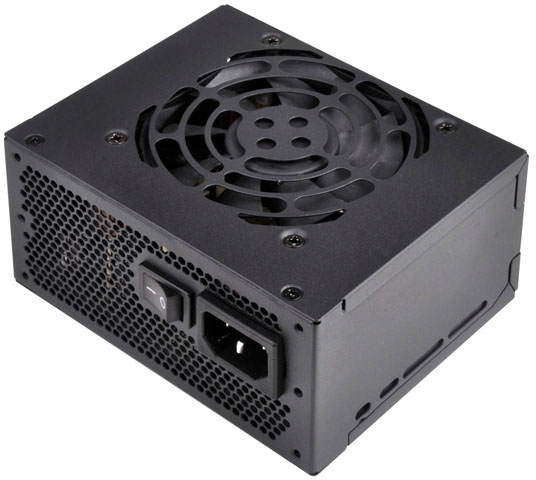

SilverStone SX550
SilverStone 80 PLUS Gold

SilverStone SX550 550 W

Power
550W
PCIe 8-Pin
2
Form Factor
SFX
Warranty
3Years
Buy this power supply at Amazon

Technical details

Power

Output Power
550 W
80 Plus Certification
80 PLUS Gold
Efficiency @ 115V/50%
90 %
Efficiency @ 230V/50%
92 %
Input Voltage
100-240

Connectors

Cable Management
No
ATX 12V
1
PCIe 8-Pin (6+2)
2
SATA
3
Molex / IDE
2

Dimensions

Form Factor
SFX
Length
100 mm
Height
64 mm
Width
125 mm

Additional data

Manufacturer
SilverStone
Series
SFX Series
Fan
80 mm
RGB Fan
No
Warranty
3 Years
Release date
Q2/2016
Launch Price
100 $
Part-no
SST-SX550
Documents
data sheet
