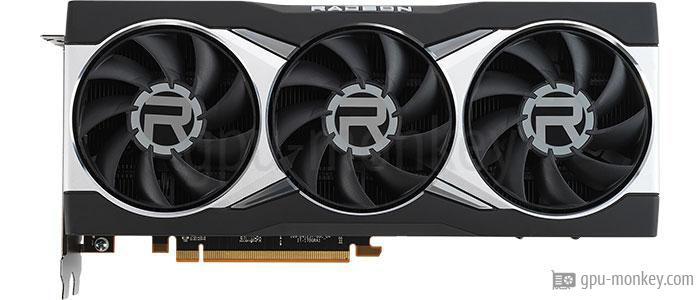

ASUS Radeon RX 6800
vs
MSI Radeon RX 5600 XT Gaming M
GPU comparison with benchmarksThe ASUS Radeon RX 6800 has 3840 shader units and these clock a maximum of 2.11 GHz which results in an FP32 computing power of 16.17 TFLOPS.
The MSI Radeon RX 5600 XT Gaming M has 2304 shader units and these clock at a maximum of 1.56 GHz and achieve an FP32 computing power of 7.20 TFLOPS. |
||
GPUThe ASUS Radeon RX 6800 is equipped with a graphics chip of the RDNA 2 architecture, which has 60 streaming multiprocessors. The graphics card MSI Radeon RX 5600 XT Gaming M is based on the RDNA 1 architecture and is equipped with 36 execution units. |
||
| ASUS Radeon RX 6800 | GPU | MSI Radeon RX 5600 XT Gaming M |
| AMD Radeon RX 6800 | Based on | AMD Radeon RX 5600 XT |
| Navi 21 | GPU Chip | Navi 10 XLE |
| RDNA 2 | Architecture | RDNA 1 |
| 60 | Streaming Multiprocessors | 36 |
| 3840 | Shader | 2304 |
| 96 | Render Output Units | 64 |
| 240 | Texture Units | 144 |
| 60 | Raytracing Cores | 0 |
MemoryThe ASUS Radeon RX 6800 is equipped with a 16 GB large GDDR6 graphics memory, which is equipped with 2.000 GHz clocks. The MSI Radeon RX 5600 XT Gaming M has a 6 GB large GDDR6 graphics memory and the memory clock is 1.750GHz. |
||
| 16 GB | Memory Size | 6 GB |
| GDDR6 | Memory Type | GDDR6 |
| 2.000 GHz | Memory Clock | 1.750 GHz |
| 16.0 Gbps | Memory Speed | 14.0 Gbps |
| 512 GB/s | Memory bandwidth | 336 GB/s |
| 256 bit | Memory Interface | 192 bit |
Clock SpeedsThe ASUS Radeon RX 6800 has a turbo clock of 2.105 GHz. The turbo frequency of the MSI Radeon RX 5600 XT Gaming M is 1.560 GHz. |
||
| 1.700 GHz | Base Clock | 1.130 GHz |
| 2.105 GHz | Boost Clock | 1.560 GHz |
| 1.82 GHz | Avg (Game) Clock | 1.38 GHz |
| Yes | Overclocking | Yes |
Thermal DesignThe ASUS Radeon RX 6800 has 2 x 8-Pin connectors through which it is supplied with power. The manufacturer specifies the maximum operating temperature of the graphics card as 100 °C. The MSI Radeon RX 5600 XT Gaming M is equipped with a 2 x 8-Pin PCIe power connector that supplies it with power. The maximum operating temperature of the card is 100 °C. |
||
| 250 W | TDP | 160 W |
| 285 W | TDP (up) | 195 W |
| 100 °C | Tjunction max | 100 °C |
| 2 x 8-Pin | PCIe-Power | 2 x 8-Pin |
Cooler & FansThe graphics processor and graphics memory of the ASUS Radeon RX 6800 are cooled with a Air cooling. The MSI Radeon RX 5600 XT Gaming M is cooled by a Air cooling. |
||
| Axial | Fan-Type | Axial |
| 3 x 85 mm | Fan 1 | 2 x 100 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 28 dB |
| 35 dB | Noise (Load) | 33 dB |
ConnectivityThe ASUS Radeon RX 6800 supports the downward compatible copy protection HDCP in version 2.3. The MSI Radeon RX 5600 XT Gaming M supports HDCP in version 2.3 and all previous versions. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1 | HDMI Ports | 1x HDMI v2.0b |
| 2x DP v1.4a | DP Ports | 3x DP v1.4 |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| 1 | USB-C Ports | -- |
FeaturesetThe ASUS Radeon RX 6800 supports the DirectX standard from Microsoft in version 12_2 (Ultimate). The MSI Radeon RX 5600 XT Gaming M supports Microsoft's DirectX version 12_2 (Ultimate). |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | No |
| Yes | DLSS / FSR | Yes |
| Non addressable LED | LED | MSI Mystic Light |
Supported Video CodecsThis area lists which video codecs can be decoded or encoded by the graphics cards in hardware. As a result, the power consumption can be reduced due to a lower processor load. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode | AV1 | No |
| Decode / Encode | VP8 | Decode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe ASUS Radeon RX 6800 is 40 mm wide and therefore needs the space of 2 PCIe-Slots in the case. The width of the MSI Radeon RX 5600 XT Gaming M is 40 mm and thus requires the space of 2 PCIe-Slots in the PC case. |
||
| 267 mm | Length | 297 mm |
| 120 mm | Height | 141 mm |
| 40 mm | Width | 42 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | 922 g |
| PCIe 4.0 x 16 | GPU Interface | PCIe 4.0 x 16 |
Additional dataManufactured using the 7 nanometer process, ASUS Radeon RX 6800 was released in Q4/2020. The MSI Radeon RX 5600 XT Gaming M published in Q1/2020 is manufactured with a structure width of 7 nanometers. |
||
| RX6800-16G | Part-no | -- |
| Q4/2020 | Release date | Q1/2020 |
| 579 $ (Reference) | Launch Price | 279 $ (Reference) |
| 7 nm | Structure size | 7 nm |
| data sheet | Documents | data sheet |
1.700 GHz, 16 GB (250 W TDP)
Buy this graphic card at amazon!
1.130 GHz, 6 GB (160 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
Port Royal (Raytracing)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Speed Way Graphics Score (Raytracing)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
Cyberpunk 2077
Cyberpunk 2077 was developed by CD Projekt Red and is based on the development studio's own REDengine 4. Ray tracing is switched off in our benchmarks.
3840x2160 (2160p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
The Last of Us Part 1
The Last of Us Part One is a game released by Sony in June 2013 exclusively for the Playstation and released for the PC in early 2023. The benchmark values here were determined at high details.
3840x2160 (2160p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
2560x1440 (1440p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
1920x1080 (1080p)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
Geekbench 6 - Vulkan
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
Geekbench 6 - Metal
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
ASUS Radeon RX 6800
16 GB GDDR6 |
||
|
|
MSI Radeon RX 5600 XT Gaming M
6 GB GDDR6 |
||
