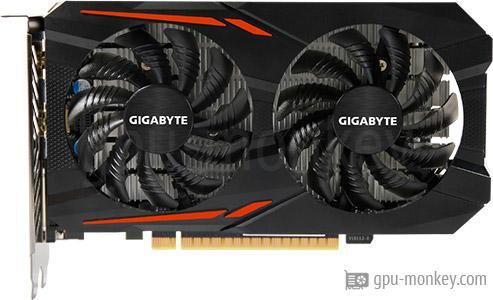

GIGABYTE GeForce GTX 1050 OC 3G
vs
KFA2 GeForce GTX 1060 3GB
GPU comparison with benchmarksThe GIGABYTE GeForce GTX 1050 OC 3G is based on the NVIDIA GeForce GTX 1050 3GB (Pascal) and has 3 GB GDDR5 graphics memory with a bandwidth of 84 GB/s.
The KFA2 GeForce GTX 1060 3GB is based on the NVIDIA GeForce GTX 1060 3GB (Pascal) and has 3 GB GDDR5 graphics memory with a bandwidth of 192 GB/s. |
||
GPUThe GIGABYTE GeForce GTX 1050 OC 3G has the GP107-301-A1 graphics chip installed, which is based on the Pascal architecture. The KFA2 GeForce GTX 1060 3GB is based on the graphics chip GP106-300-A1, which comes from the Pascal architecture. |
||
| GIGABYTE GeForce GTX 1050 OC 3G | GPU | KFA2 GeForce GTX 1060 3GB |
| NVIDIA GeForce GTX 1050 3GB | Based on | NVIDIA GeForce GTX 1060 3GB |
| GP107-301-A1 | GPU Chip | GP106-300-A1 |
| Pascal | Architecture | Pascal |
| 6 | Streaming Multiprocessors | 9 |
| 768 | Shader | 1152 |
| 24 | Render Output Units | 48 |
| 48 | Texture Units | 72 |
| 0 | Raytracing Cores | 0 |
MemoryThe graphics memory of the GIGABYTE GeForce GTX 1050 OC 3G clocks at 1.752 GHz, which corresponds to a speed of 7.0 Gbps. The graphics memory speed of the KFA2 GeForce GTX 1060 3GB is 8.0 Gbps and the clock speed is 2.002 GHz. |
||
| 3 GB | Memory Size | 3 GB |
| GDDR5 | Memory Type | GDDR5 |
| 1.752 GHz | Memory Clock | 2.002 GHz |
| 7.0 Gbps | Memory Speed | 8.0 Gbps |
| 84 GB/s | Memory bandwidth | 192 GB/s |
| 96 bit | Memory Interface | 192 bit |
Clock SpeedsThe clock frequency of a graphics card determines the speed in connection with the graphics architecture. |
||
| 1.417 GHz | Base Clock | 1.506 GHz |
| 1.582 GHz | Boost Clock | 1.708 GHz |
| 1.56 GHz | Avg (Game) Clock | |
| Yes | Overclocking | Yes |
Thermal DesignThe GIGABYTE GeForce GTX 1050 OC 3G is powered by connectors. The TDP (Thermal Design Power) of the graphics card is 75 W. The KFA2 GeForce GTX 1060 3GB has 1 x 6-Pin PCIe power connectors that supply it with energy. The manufacturer specifies the TDP of the card as 120 W. |
||
| 75 W | TDP | 120 W |
| -- | TDP (up) | -- |
| 97 °C | Tjunction max | 94 °C |
| PCIe-Power | 1 x 6-Pin | |
Cooler & FansThe GIGABYTE GeForce GTX 1050 OC 3G is equipped with a total of 2 Axial main fans. The KFA2 GeForce GTX 1060 3GB has 1 Radial main fans that cool the GPU and memory. |
||
| Axial | Fan-Type | Radial |
| 2 x 80 mm | Fan 1 | 1 x 70 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| dB | Noise (Idle) | dB |
| -- | Noise (Load) | -- |
ConnectivityUp to 3 screens can be operated with the GIGABYTE GeForce GTX 1050 OC 3G. The KFA2 GeForce GTX 1060 3GB supports the operation of a maximum of 4 monitors. |
||
| 3 | Max. Displays | 4 |
| 2.2 | HDCP-Version | 2.2 |
| 1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
| 1x DP v1.4 | DP Ports | 3x DP v1.4 |
| 1 | DVI Ports | 1 |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetWith the GIGABYTE GeForce GTX 1050 OC 3G it is possible to operate a screen with a maximum resolution of up to 7680x4320 pixels. The maximum supported resolution of the KFA2 GeForce GTX 1060 3GB is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_1 | DirectX | 12_1 |
| No | Raytracing | No |
| Yes | DLSS / FSR | Yes |
| No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs can have a positive impact on the lower energy consumption and less waste heat from the graphics card. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| No | AV1 | No |
| No | VP8 | No |
| Decode | VP9 | Decode |
DimensionsThe GIGABYTE GeForce GTX 1050 OC 3G is connected to the system via PCIe 3.0 x 16 lanes and requires 2 PCIe-Slots space in the housing. The KFA2 GeForce GTX 1060 3GB needs the space of 2 PCIe-Slots in the case and has a PCIe 3.0 x 16 Lanes interface. |
||
| 191 mm | Length | 255 mm |
| 111 mm | Height | 125 mm |
| 36 mm | Width | 42 mm |
| 2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| -- | Weight | -- |
| PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataThe GIGABYTE GeForce GTX 1050 OC 3G has been manufactured with a structure width of 14 nanometers since Q2/2018. The KFA2 GeForce GTX 1060 3GB came on the market in Q3/2016 and will have a structure width of 16 nanometers manufactured. |
||
| GV-N1050OC-3GD | Part-no | 60NNH7DHL6VK |
| Q2/2018 | Release date | Q3/2016 |
| 109 $ (Reference) | Launch Price | 199 $ (Reference) |
| 14 nm | Structure size | 16 nm |
| data sheet | Documents | data sheet |
1.417 GHz, 3 GB (75 W TDP)
Buy this graphic card at amazon!
1.506 GHz, 3 GB (120 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
3DMark Benchmark (DirectX, Raytracing)
3DMark is a benchmark program that determines the performance of certain components of a computer and then reports the performance as a numerical value.
Time Spy Extreme Graphics score
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
Battlefield 5
Battlefield 5 is a visually stunning game that is ideal as a graphics card benchmark. We test the game with maximum details on Windows 10.
3840x2160 (2160p)
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
2560x1440 (1440p)
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
1920x1080 (1080p)
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
Geekbench 6 (OpenCL, Vulkan, Metal)
Geekbench 6 is a cross-platform benchmark for main processors, which also carries out 3 different graphics benchmarks and outputs them in the form of a numerical value.
Geekbench 6 - OpenCL
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
Geekbench 6 - Vulkan
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
|
GIGABYTE GeForce GTX 1050 OC 3G
3 GB GDDR5 |
||
|
|
KFA2 GeForce GTX 1060 3GB
3 GB GDDR5 |
||
