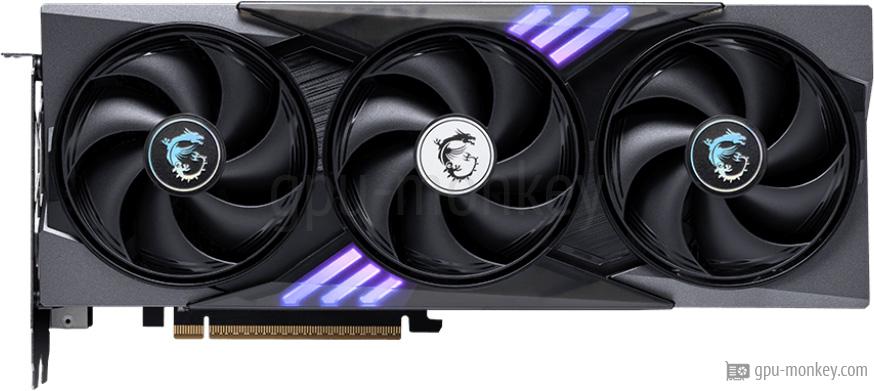

MSI GeForce RTX 5060 GAMING TRIO
vs
ZOTAC GeForce RTX 5060 AMP
GPU comparison with benchmarksIn the gpu comparison between the MSI GeForce RTX 5060 GAMING TRIO and the ZOTAC GeForce RTX 5060 AMP, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe MSI GeForce RTX 5060 GAMING TRIO is based on the NVIDIA GeForce RTX 5060 and has 3840 texture shaders and 30 execution units. ZOTAC GeForce RTX 5060 AMP is based on NVIDIA GeForce RTX 5060, which has 3840 shaders and 30 execution units. |
||
| MSI GeForce RTX 5060 GAMING TRIO | GPU | ZOTAC GeForce RTX 5060 AMP |
| NVIDIA GeForce RTX 5060 | Based on | NVIDIA GeForce RTX 5060 |
| GB206-250-A1 | GPU Chip | GB206-250-A1 |
| Blackwell 2.0 | Architecture | Blackwell 2.0 |
| 30 | Streaming Multiprocessors | 30 |
| 3840 | Shader | 3840 |
| 48 | Render Output Units | 48 |
| 120 | Texture Units | 120 |
| 30 | Raytracing Cores | 30 |
MemoryThe MSI GeForce RTX 5060 GAMING TRIO has 8 GB of graphics memory of the type GDDR7 and achieves a memory bandwidth of 448 GB/s. The ZOTAC GeForce RTX 5060 AMP can access 8 GB GDDR7 graphics memory and thus achieves a memory bandwidth of 448 GB/s. |
||
| 8 GB | Memory Size | 8 GB |
| GDDR7 | Memory Type | GDDR7 |
| 1.750 GHz | Memory Clock | 1.750 GHz |
| 28.0 Gbps | Memory Speed | 28.0 Gbps |
| 448 GB/s | Memory bandwidth | 448 GB/s |
| 128 bit | Memory Interface | 128 bit |
Clock SpeedsThe MSI GeForce RTX 5060 GAMING TRIO clocks in the base with up to 2.280 GHz. The base frequency of the ZOTAC GeForce RTX 5060 AMP is 2.280 GHz. |
||
| 2.280 GHz | Base Clock | 2.280 GHz |
2.512 GHz + 1 % |
Boost Clock | 2.550 GHz+ 2 % |
| Avg (Game) Clock | ||
| Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the MSI GeForce RTX 5060 GAMING TRIO is 155 W + 7 %. The graphics card is supplied with energy via the 1 x 8-Pin connector.The ZOTAC GeForce RTX 5060 AMP has a TDP of 155 W + 7 % and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
| 155 W+ 7 % |
TDP | 155 W+ 7 % |
| -- | TDP (up) | -- |
| 89 °C | Tjunction max | 89 °C |
| 1 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe MSI GeForce RTX 5060 GAMING TRIO has a total of 3 Axial fans. The ZOTAC GeForce RTX 5060 AMP has 2 Axial fans to cool the GPU and memory. |
||
| Axial | Fan-Type | Axial |
| 3 x 90 mm | Fan 1 | 2 x 90 mm |
| -- | Fan 2 | -- |
| Air cooling | Cooler-Type | Air cooling |
| 0 dB | Noise (Idle) | 0 dB |
| -- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the MSI GeForce RTX 5060 GAMING TRIO. The ZOTAC GeForce RTX 5060 AMP supports a maximum of 4 screens. |
||
| 4 | Max. Displays | 4 |
| 2.3 | HDCP-Version | 2.3 |
| 1x HDMI v2.1b | HDMI Ports | 1x HDMI v2.1b |
| 3x DP v2.1b | DP Ports | 3x DP v2.1b |
| -- | DVI Ports | -- |
| -- | VGA Ports | -- |
| -- | USB-C Ports | -- |
FeaturesetThe MSI GeForce RTX 5060 GAMING TRIO supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the ZOTAC GeForce RTX 5060 AMP is 7680x4320 pixels. |
||
| 7680x4320 | Max. resolution | 7680x4320 |
| 12_2 (Ultimate) | DirectX | 12_2 (Ultimate) |
| Yes | Raytracing | Yes |
| Yes | DLSS / FSR | Yes |
| MSI Mystic Light | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
| Decode / Encode | h264 | Decode / Encode |
| Decode / Encode | h265 / HEVC | Decode / Encode |
| Decode / Encode | AV1 | Decode / Encode |
| Decode / Encode | VP8 | Decode / Encode |
| Decode / Encode | VP9 | Decode / Encode |
DimensionsThe MSI GeForce RTX 5060 GAMING TRIO is 300 mm long, 125 mm high and 44 mm wide. The ZOTAC GeForce RTX 5060 AMP is 221 mm long, 120 mm high and 42 mm wide. |
||
| 300 mm | Length | 221 mm |
| 125 mm | Height | 120 mm |
| 44 mm | Width | 42 mm |
| 3 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
| 797 g | Weight | -- |
| PCIe 5 x 8 | GPU Interface | PCIe 5 x 8 |
| No | SFF-Ready | No |
Additional dataThe MSI GeForce RTX 5060 GAMING TRIO was released in Q2/2025 at a price of 299 $ (Reference). The ZOTAC GeForce RTX 5060 AMP was introduced in Q2/2025 at a price of 299 $ (Reference). |
||
| G5060-8GT | Part-no | ZT-B50600F-10M |
| Q2/2025 | Release date | Q2/2025 |
| 299 $ (Reference) | Launch Price | 299 $ (Reference) |
| 5 nm | Structure size | 5 nm |
| data sheet | Documents | data sheet |
2.280 GHz, 8 GB (155 W TDP)
Buy this graphic card at amazon!
2.280 GHz, 8 GB (155 W TDP)
Buy this graphic card at amazon!
Rate these graphics cards now
Benchmark results
FP32 Performance (Single-precision TFLOPS)
The theoretical computing power of the graphics card with single precision (32 bit) in TFLOPS indicates how many trillion FP32 floating point operations the graphics card (GPU) can perform per second.
FP32 (TFLOPS)
|
MSI GeForce RTX 5060 GAMING TRIO
8 GB GDDR7 |
||
|
ZOTAC GeForce RTX 5060 AMP
8 GB GDDR7 |
||
