GPU comparison with benchmarksIn the gpu comparison between the ZOTAC GeForce GTX 1070 Twin Fan and the KFA2 GeForce RTX 2060, we compare both the technical data and the benchmark results of the two graphics cards.
|
||
GPUThe ZOTAC GeForce GTX 1070 Twin Fan is based on the NVIDIA GeForce GTX 1070 and has 1920 texture shaders and 15 execution units. KFA2 GeForce RTX 2060 is based on NVIDIA GeForce RTX 2060, which has 1920 shaders and 30 execution units. |
||
ZOTAC GeForce GTX 1070 Twin Fan | GPU | KFA2 GeForce RTX 2060 |
NVIDIA GeForce GTX 1070 | Based on | NVIDIA GeForce RTX 2060 |
GP104-200-A1 | GPU Chip | TU106 |
Pascal | Architecture | Turing |
15 | Streaming Multiprocessors | 30 |
1920 | Shader | 1920 |
64 | Render Output Units | 48 |
120 | Texture Units | 120 |
0 | Raytracing Cores | 30 |
MemoryThe ZOTAC GeForce GTX 1070 Twin Fan has 8 GB of graphics memory of the type GDDR5 and achieves a memory bandwidth of 256 GB/s. The KFA2 GeForce RTX 2060 can access 6 GB GDDR6 graphics memory and thus achieves a memory bandwidth of 336 GB/s. |
||
8 GB | Memory Size | 6 GB |
GDDR5 | Memory Type | GDDR6 |
2.002 GHz | Memory Clock | 1.750 GHz |
8.0 Gbps | Memory Speed | 14.0 Gbps |
256 GB/s | Memory bandwidth | 336 GB/s |
256 bit | Memory Interface | 192 bit |
Clock SpeedsThe ZOTAC GeForce GTX 1070 Twin Fan clocks in the base with up to 1.506 GHz. The base frequency of the KFA2 GeForce RTX 2060 is 1.365 GHz. |
||
1.506 GHz | Base Clock | 1.365 GHz |
1.683 GHz | Boost Clock | 1.680 GHz |
Avg (Game) Clock | ||
Yes | Overclocking | Yes |
Thermal DesignThe TDP (Thermal Design Power) of the ZOTAC GeForce GTX 1070 Twin Fan is 220 W. The graphics card is supplied with energy via the 2 x 8-Pin connector. The KFA2 GeForce RTX 2060 has a TDP of 160 W and is supplied with the required energy via 1 x 8-Pin PCIe power connectors. |
||
220 W | TDP | 160 W |
-- | TDP (up) | -- |
94 °C | Tjunction max | 88 °C |
2 x 8-Pin | PCIe-Power | 1 x 8-Pin |
Cooler & FansThe ZOTAC GeForce GTX 1070 Twin Fan has a total of 2 Axial fans. The KFA2 GeForce RTX 2060 has 2 Radial fans to cool the GPU and memory. |
||
Axial | Fan-Type | Radial |
2 x 100 mm | Fan 1 | 2 x 65 mm |
-- | Fan 2 | -- |
Air cooling | Cooler-Type | Air cooling |
dB | Noise (Idle) | 0 dB |
-- | Noise (Load) | -- |
ConnectivityIn the connectivity category, we recorded the number of ports on a graphics card. A total of 4 screens can be connected to the ZOTAC GeForce GTX 1070 Twin Fan. The KFA2 GeForce RTX 2060 supports a maximum of 4 screens. |
||
4 | Max. Displays | 4 |
2.2 | HDCP-Version | 2.2 |
1x HDMI v2.0b | HDMI Ports | 1x HDMI v2.0b |
3x DP v1.4 | DP Ports | 1x DP v1.4a |
1 | DVI Ports | 1 |
-- | VGA Ports | -- |
-- | USB-C Ports | -- |
FeaturesetThe ZOTAC GeForce GTX 1070 Twin Fan supports a maximum resolution of 7680x4320 pixels. The maximum resolution of the KFA2 GeForce RTX 2060 is 7680x4320 pixels. |
||
7680x4320 | Max. resolution | 7680x4320 |
12_1 | DirectX | 12_2 (Ultimate) |
No | Raytracing | Yes |
Yes | DLSS / FSR | Yes |
No LED lighting | LED | No LED lighting |
Supported Video CodecsThe support and acceleration of certain video codecs directly in the graphics card reduces the load when playing or creating videos. |
||
Decode / Encode | h264 | Decode / Encode |
Decode / Encode | h265 / HEVC | Decode / Encode |
No | AV1 | No |
Decode | VP8 | Decode |
Decode | VP9 | Decode |
DimensionsThe ZOTAC GeForce GTX 1070 Twin Fan is 300 mm long, 148 mm high and 44 mm wide. The KFA2 GeForce RTX 2060 is 281 mm long, 124 mm high and 41 mm wide. |
||
300 mm | Length | 281 mm |
148 mm | Height | 124 mm |
44 mm | Width | 41 mm |
2 PCIe-Slots | Width (Slots) | 2 PCIe-Slots |
-- | Weight | -- |
PCIe 3.0 x 16 | GPU Interface | PCIe 3.0 x 16 |
Additional dataThe ZOTAC GeForce GTX 1070 Twin Fan was released in Q4/2017 at a price of 379 $ (Reference). The KFA2 GeForce RTX 2060 was introduced in Q1/2019 at a price of 349 $ (Reference). |
||
ZT-P10700E-10S | Part-no | 60NRJ7DSX1PK |
Q4/2017 | Release date | Q1/2019 |
379 $ (Reference) | Launch Price | 349 $ (Reference) |
16 nm | Structure size | 12 nm |
-- | Documents | data sheet |
ZOTAC GeForce GTX 1070 Twin Fan
8 GB GDDR5 |
|||

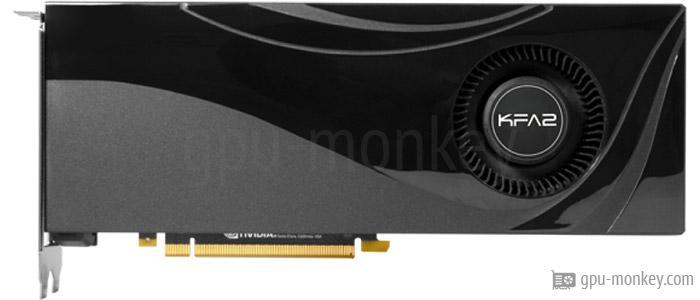

KFA2 GeForce RTX 2060
